Provenance and audit

AkôFlow exposes two complementary records:

• Provenance connects workflows, plans, runs, activities, transfers, and data as scientific evidence.
• Audit records operational actions such as discovery, connection use, console access, credentials, and workflow operations.

Use provenance to answer “how was this result produced?” Use audit to answer “what operation happened, when, to which target, and with what outcome?”

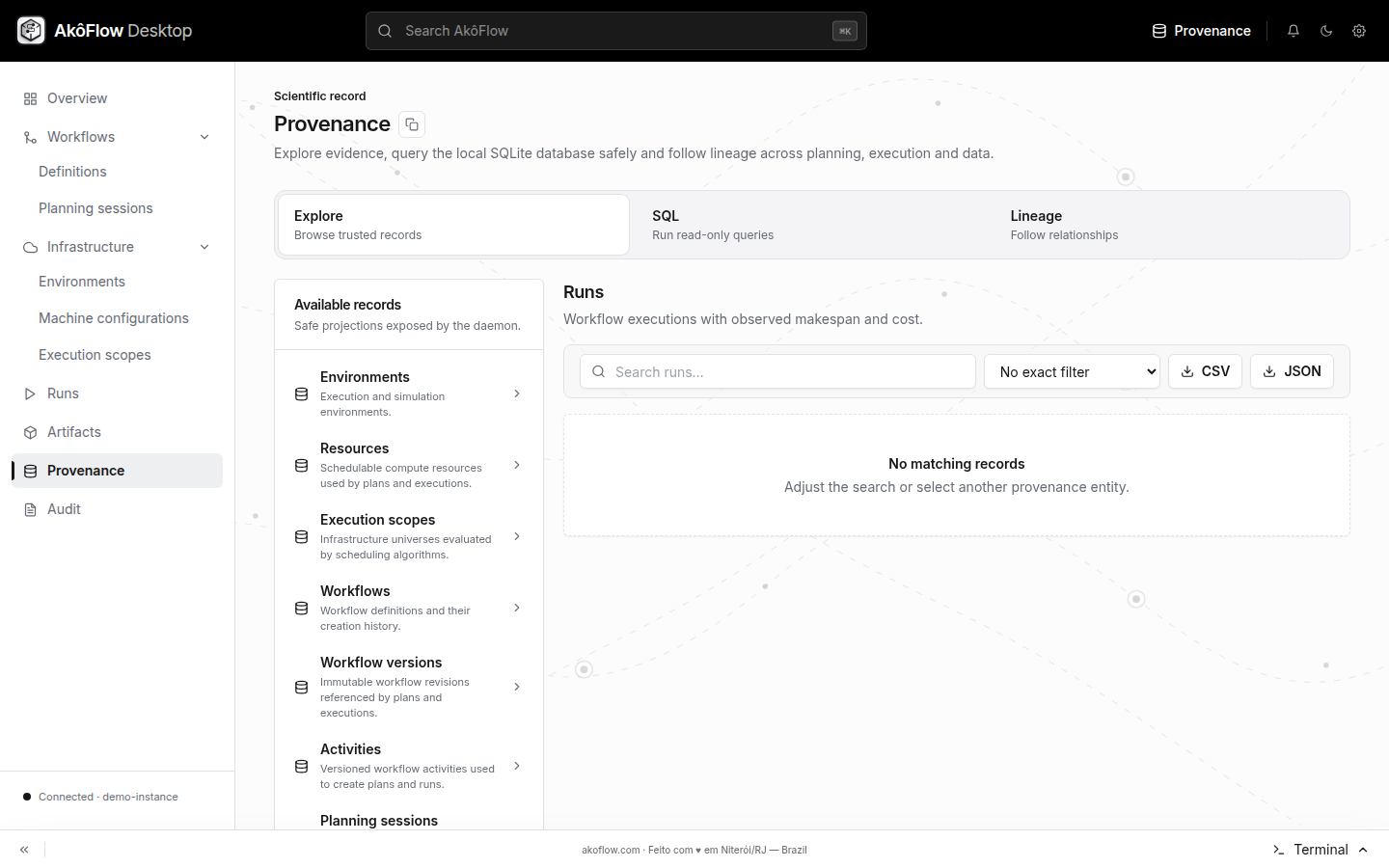

Explore provenance in Desktop

Open Provenance. The Explore tab loads a server-defined entity catalog. Select an entity, search across its safe projection, apply a field filter, sort a column, and page through the result. The current page can be exported as CSV or JSON.

The catalog defines the projections available for exploration. In the Runs projection, the row action opens the record details and the lineage action follows its relationship to the selected plan; use the search and export controls only after choosing the record type that answers the question.

The API exposes the same server-defined catalog and query:

curl -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  "$AKOFLOW_URL/akoflow-api/provenance/entities/"

curl -G -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  --data-urlencode "q=completed" \
  --data-urlencode "filterField=status" \
  --data-urlencode "filterValue=completed" \
  --data-urlencode "page=1" \
  --data-urlencode "pageSize=50" \
  --data-urlencode "sortField=created_at" \
  --data-urlencode "sortOrder=desc" \
  "$AKOFLOW_URL/akoflow-api/provenance/entities/runs/"

Entity names and fields are supplied by /provenance/entities/; clients should not invent them. Query responses include entity metadata, items, page, pageSize, total, and hasNext.

Follow lineage

From an Explore result, choose Open lineage, or open the Lineage tab and provide an entity and ID. Select upstream, downstream, or both, choose a depth, then inspect nodes and relationships. Any node can become the new root.

The fan-out example starts at the completed run. Distance 1 contains its plan, activity executions, and transfers; distance 2 reaches the workflow version, scope, activities, and allocated resources. Select a card to inspect the fields in the detail panel rather than inferring them from its position in the graph.

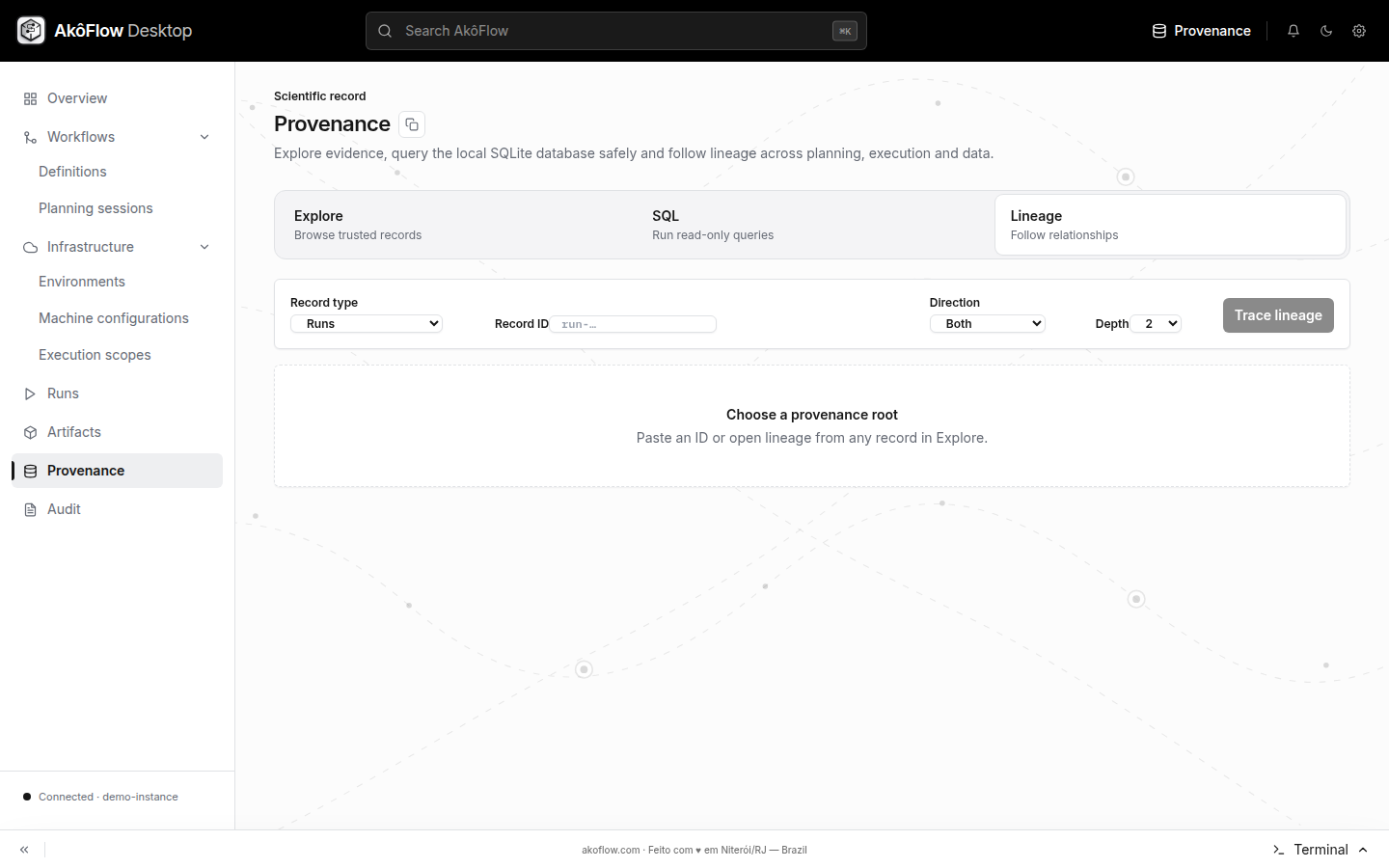

Read the Lineage screen

Area	Use it for	Important interpretation
Record type and Record ID	Define the root record. The current root can also come from Open lineage in Explore.	Use the stored ID, not a display name. IDs remain stable when a user changes a label.
Direction and Depth	Choose whether to follow antecedents, descendants, or both, then bound the search.	A larger depth adds relationships; it does not mean a later execution time. Start at 1 or 2 and expand only when the question requires it.
Lineage graph	Inspect the nodes grouped by graph distance from the root.	The heading reports the returned node and relationship counts. Grouped columns are distance from the root, not workflow stages or chronological lanes.
Find a node and node-type filter	Reduce a large graph to a specific record or entity kind such as transfers or activity executions.	Filtering changes the visible graph only. It does not change the lineage query or delete evidence.
Selected-record panel	Read the status and persisted fields for the selected card, then use Open record for the operational page.	The panel is evidence for that one record. Compare the plan and run IDs deliberately when investigating planned versus observed behavior.
Export JSON	Preserve the exact lineage response for an investigation or a report.	The export is a snapshot of the current root, direction, and depth; record those choices with the file.

curl -G -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  --data-urlencode "direction=both" \
  --data-urlencode "depth=2" \
  --data-urlencode "maxNodes=300" \
  "$AKOFLOW_URL/akoflow-api/provenance/lineage/runs/$RUN_ID/"

The response contains a root key, nodes, directed edges, and truncated. Increase depth deliberately: the graph may expand quickly, and the interface caps a request at 300 nodes.

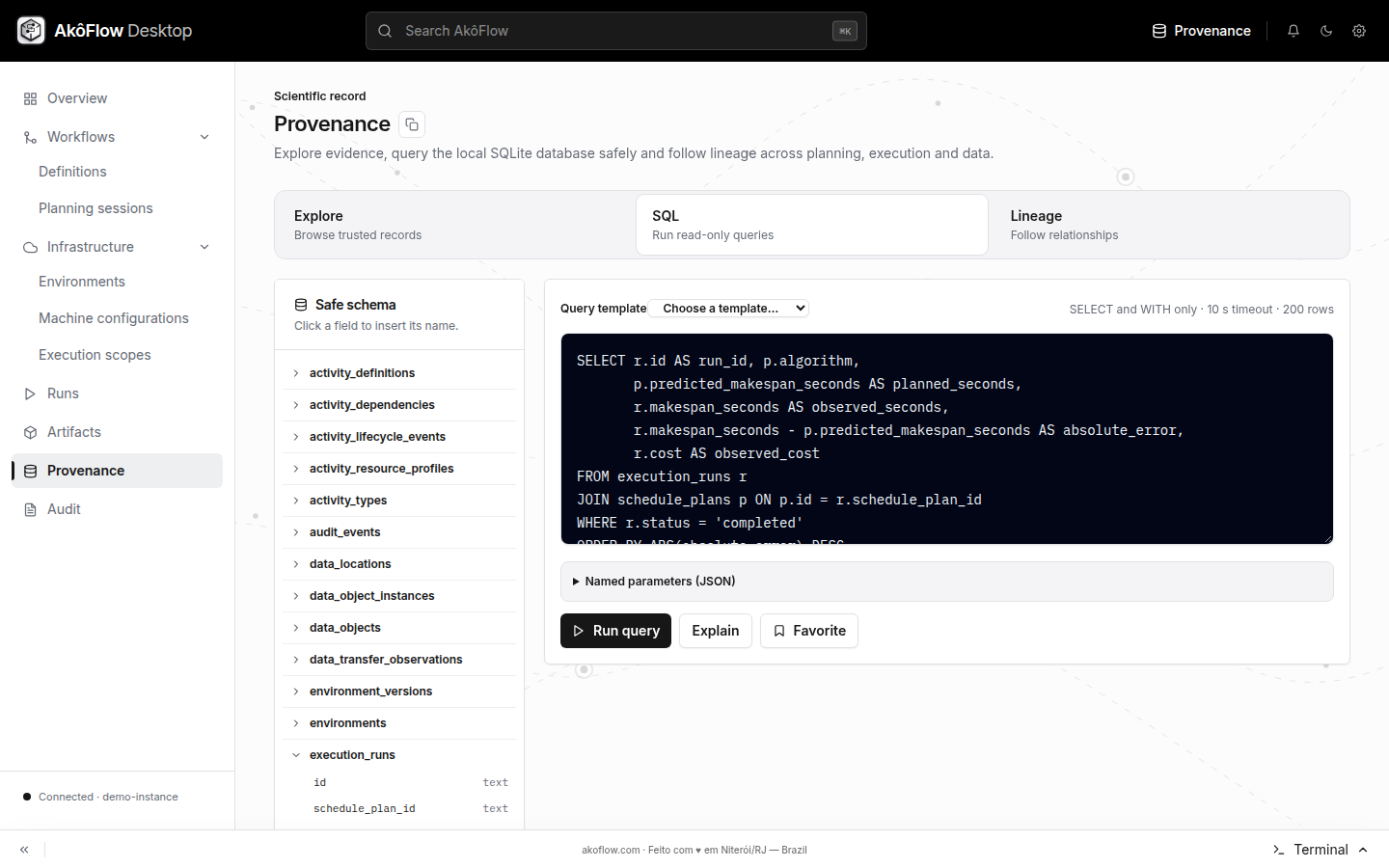

Query with read-only SQL

The SQL tab presents the queryable schema, templates for common investigations, named JSON parameters, result paging, explain, favorites, and local query history.

This query joins completed execution runs to their schedule plans. The result summary reports the returned row count, current page, elapsed query time, and whether more rows are available; the values are evidence from the connected local database, not fixed example values.

Read the SQL screen

Area	Use it for	Important interpretation
Safe schema	Discover the tables and columns that the service makes available to read-only queries. Click a field to insert its name into the editor.	This is the current service schema, not a generic SQLite browser. Start here instead of assuming a column exists.
Query template	Start a common investigation, then refine it in the editor.	A template is ordinary editable SQL. Review joins, filters, and ordering before relying on its output.
Query editor	Write a SELECT or WITH query, including named parameters.	The interface shows the active timeout and row limit. Statements that modify data are rejected.
Run query and Query result	Execute the query and inspect typed columns, rows, page controls, and elapsed milliseconds.	Row limits bound one result page. A “more rows available” message means that the result is not the complete matching set yet.
Explain	Inspect SQLite's query plan before using a costly investigation repeatedly.	An explanation describes the database's access plan; it does not replace the normal query result or prove a result is scientifically meaningful.
Export CSV and Export JSON	Save the current result page for analysis or a report.	Record the SQL, parameters, page, and time of export with the file so another investigator can reproduce it.
Favorite and History	Reuse a query in the same Desktop browser profile.	They are local conveniences, not shared provenance records.

Only read-only SELECT and WITH queries are accepted. The Desktop communicates the current service limits as a 10-second execution timeout and 200 rows per page. Fetch the runtime schema instead of assuming table or column names:

curl -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  "$AKOFLOW_URL/akoflow-api/provenance/sql/schema/"

curl -X POST -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "sql":"SELECT id, status, created_at FROM execution_runs WHERE status = :status ORDER BY created_at DESC",
    "parameters":{"status":"completed"},
    "page":1,
    "pageSize":200
  }' \
  "$AKOFLOW_URL/akoflow-api/provenance/sql/"

Send the same payload to /provenance/sql/explain/ to inspect the query plan without running the ordinary result path. SQL results contain typed columns, items, pagination information, a truncated flag, and elapsed milliseconds.

Local UI state

SQL favorites and recent-query history are stored in the browser profile. They are conveniences, not provenance records, and are not synchronized through the API.

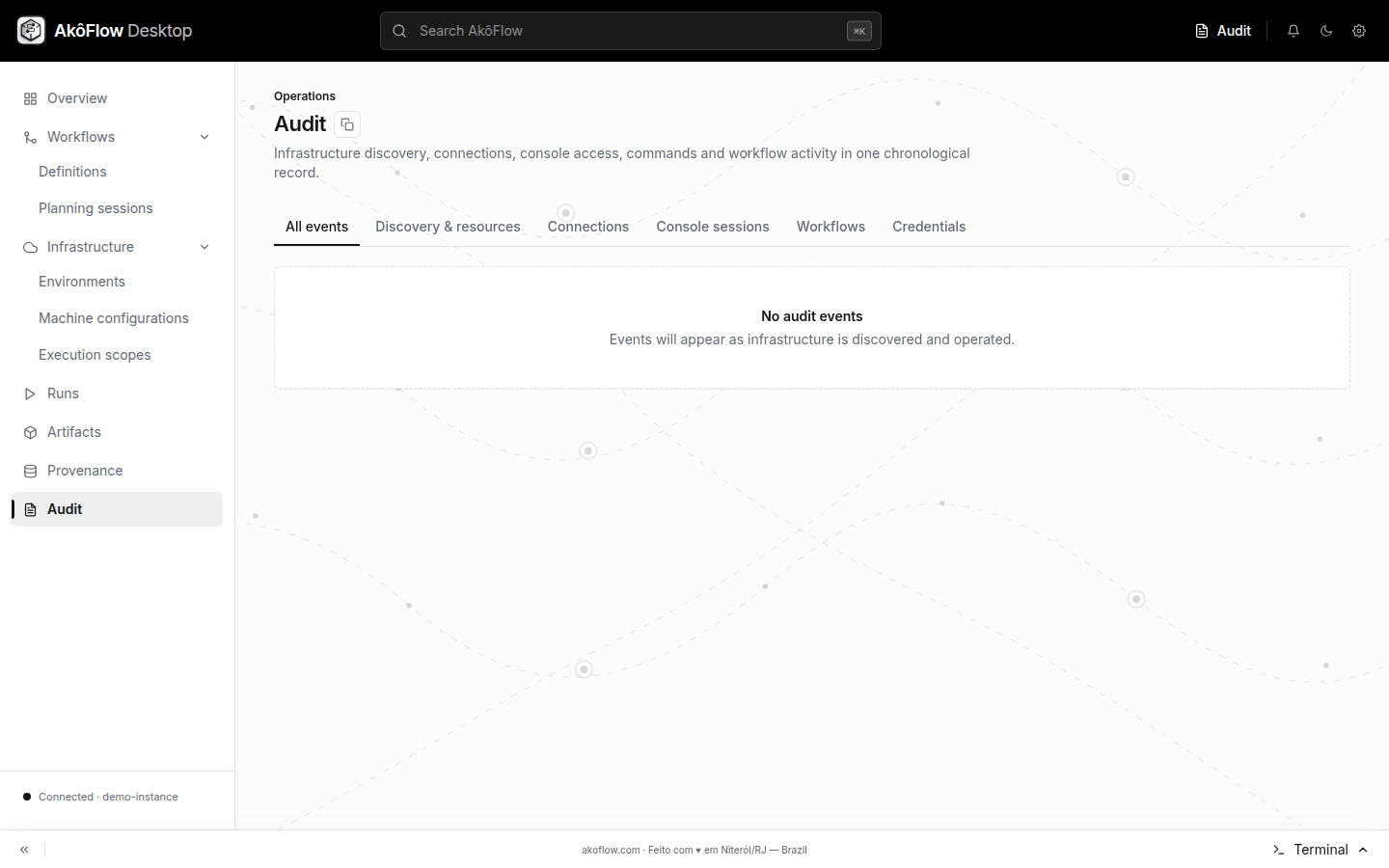

Inspect the audit trail

Open Audit for a chronological record of infrastructure discovery, connections, console access, commands, credentials, and workflow activity. It starts in All events and groups the loaded records into discovery/resources, connections, console sessions, workflows, and credentials.

Each row keeps the event time, its machine-readable type, the persisted target, the outcome, and an operational summary. In this capture, connection health checks show both a failed Kubernetes check and a successful cloud credential check; the colored outcome is a result to investigate, not a diagnosis by itself.

Read the Audit screen

Area	Use it for	Important interpretation
All events and category tabs	Narrow the visible list to discovery/resources, connections, console sessions, workflows, or credentials.	The Desktop fetches an audit list and applies these categories in the browser. All events removes that local category filter; it does not request a different server-side result set.
Time	Correlate an operation with a run, connection check, or terminal session.	The value is displayed in the local browser time zone. Use persisted IDs and API filters when an investigation needs exact cross-system correlation.
Event	Identify the operation class, such as connection.health.checked.	Event types are machine-readable, dot-separated names. The category tabs match their leading namespace.
Target	Locate the connection, environment, resource, session, execution, or system record affected by the event.	This is a persisted target identifier when one is available; it is not necessarily the friendly name shown elsewhere in Desktop.
Outcome	Quickly distinguish started, succeeded, and failed records.	A failure tells you that the recorded operation did not complete successfully. Read Summary and then inspect the target before changing a configuration.
Summary	Read the service-provided context or error associated with the event.	Treat it as operational evidence. It can include a runtime error returned by an external system, so do not copy it into public reports without reviewing it.

The API supports server-side filtering:

curl -G -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  --data-urlencode "environmentId=$ENVIRONMENT_ID" \
  --data-urlencode "outcome=failed" \
  --data-urlencode "limit=100" \
  "$AKOFLOW_URL/akoflow-api/audit-events/"

Available filter parameters are eventType, environmentId, resourceId, connectionId, sessionId, executionId, outcome, and limit. Outcomes currently include started, succeeded, and failed. The Desktop currently loads the audit list and applies its category tabs locally; use API filters for precise automation.

Investigation workflow

For a failed or surprising result:

1. Open the execution and identify the run, activity, plan, and produced data IDs.
2. Open Provenance > Explore, find the record, and open its lineage.
3. Use SQL when the question crosses multiple entities or compares planned and observed values.
4. Open Audit to correlate infrastructure, connection, credential, or console operations around the same time.
5. Export the relevant Explore page when evidence must be shared; preserve IDs so another investigator can reproduce the query.

Provenance endpoints return 503 Service Unavailable when the explorer is not configured, 400 Bad Request for invalid entity, SQL, or lineage requests, and 500 Internal Server Error if schema discovery fails.
