Workflow definitions

A workflow definition is the reusable description of a scientific computation. AkôFlow stores a stable definition and an immutable, versioned graph of activities. Plans and runs refer to the workflow version ID, so a past execution remains traceable to the graph that produced it.

The authoring format is intentionally smaller than the persisted domain model. AkôFlow normalizes activity names into IDs, creates the first workflow version, expands dependencies, converts CPU and memory limits, and records execution capabilities.

The activity model

An activity has a kind, one or more capabilities, a command, resource requirements, a retry/timeout policy, and optional simulation or service settings.

Field	Meaning
kind	task, service, or interactive in the persisted model. Portable workflow imports currently create task activities.
capabilities	The modes the activity supports: real, simulation, or interactive.
command	Executable reference, entrypoint, arguments, environment, and working directory.
resources	Normalized CPU, memory, storage, and optional GPU demand. In portable input, use cpuLimit and memoryLimit.
simulation	Model, duration, FLOPs, and optional parameters. Supplying it makes a portable activity simulation-capable.
policy	Timeout, maximum attempts, and retry delay in the persisted model.
dependsOn	Control dependencies, written with activity names in portable input.
dataDependencies	Producer-to-consumer data edges with a logical name and byte size.

For real execution, an activity needs command.entrypoint and command.executable. An executable can point to an OCI image or another supported artifact source and includes a delivery strategy. The legacy spec.image, activity image, and run shorthands are still accepted, but new definitions should prefer command and command.executable.

Using AkôFlow Desktop

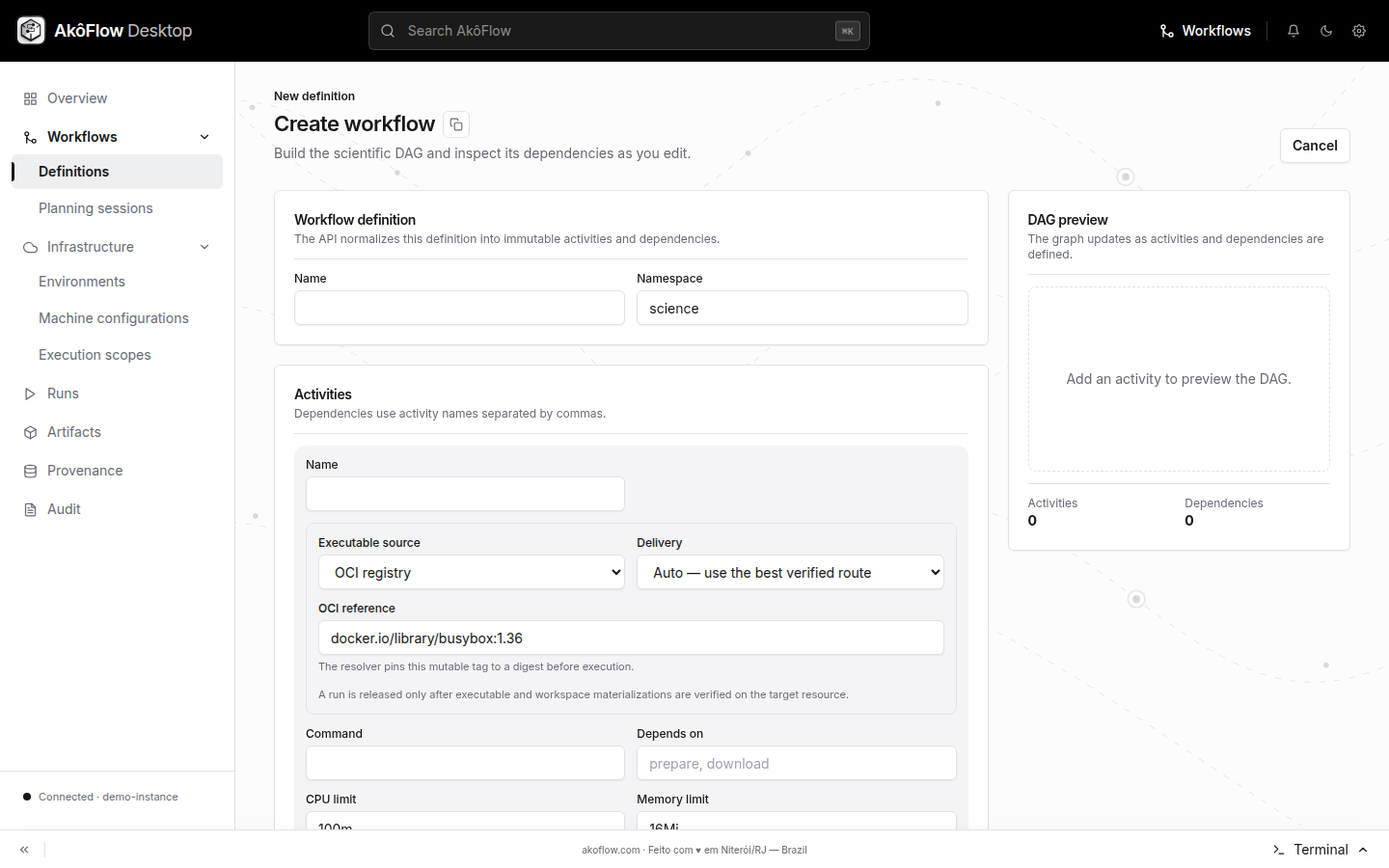

1. Open Workflows → Workflow definitions.
2. Choose Create workflow.
3. Enter the workflow name and namespace.
4. Add activities. For each activity, select an executable artifact, enter the command, CPU and memory limits, and comma-separated predecessor names.
5. Check the live DAG preview and create the workflow.

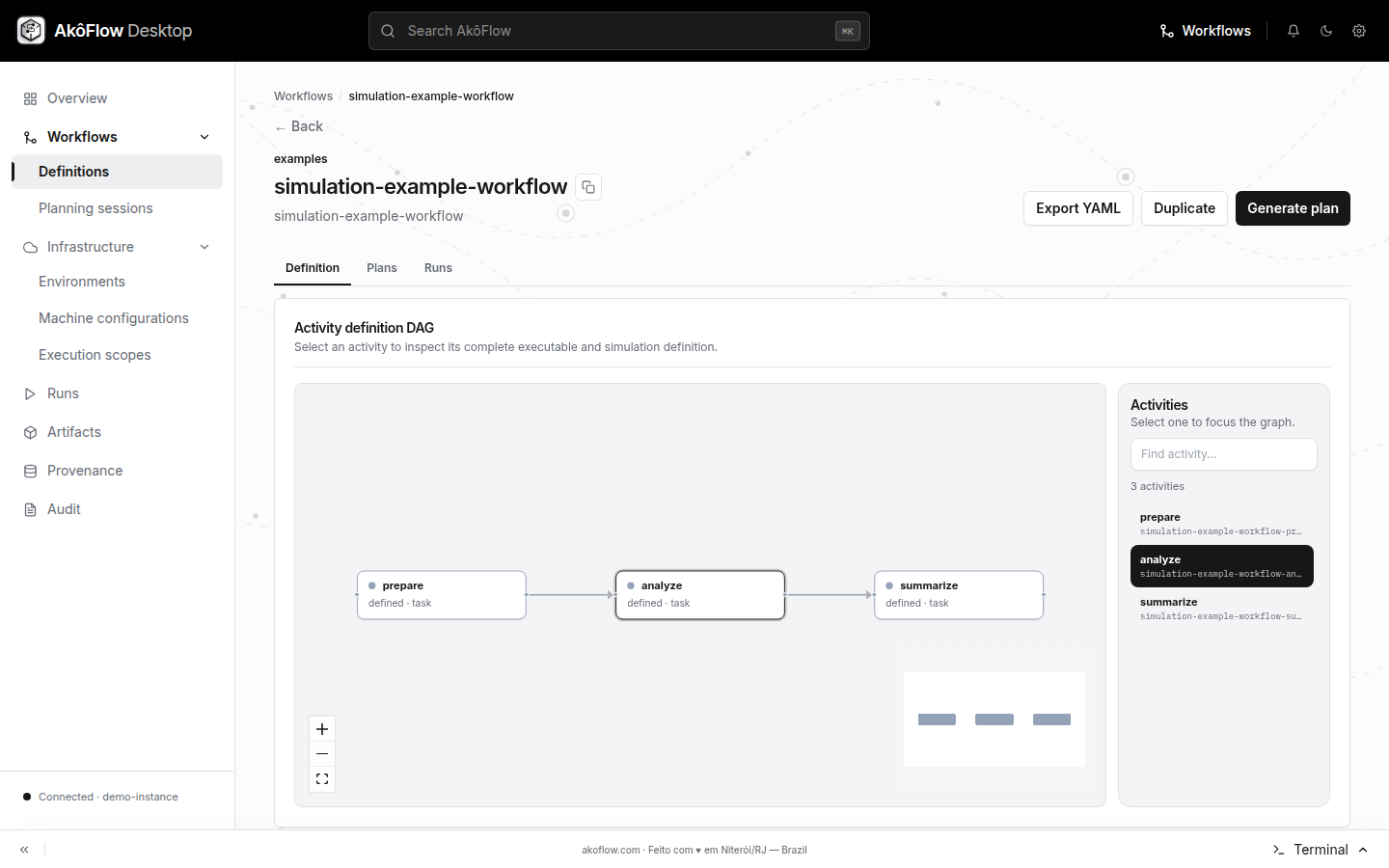

6. Open the definition to inspect its activities and dependencies. From the definition page you can also export or duplicate it.

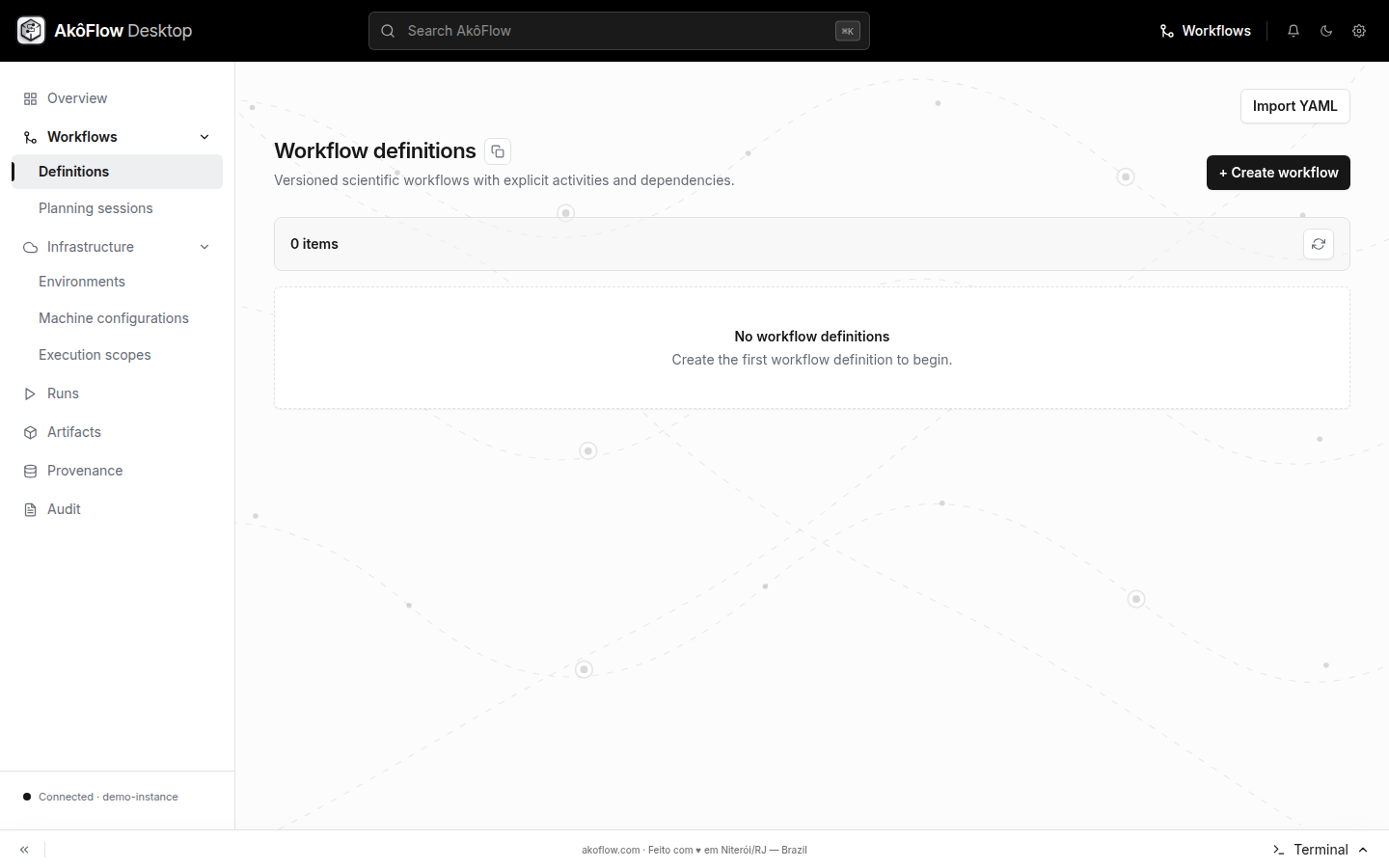

The catalog is the entry point for either path: use Import YAML for a portable definition or Create workflow to enter activities in Desktop. After creation, open the row to inspect the immutable version and its DAG.

The import action accepts the same portable YAML format as the API. Export removes generated IDs and resolved runtime paths so that the result can be imported as a new definition.

Using the API

Set the API address and, when API authentication is enabled, its bearer token:

export AKOFLOW_API_URL="http://127.0.0.1:<port>/akoflow-api"
export AKOFLOW_API_TOKEN="<token>"

The simulation example in examples/simulation/workflow.yaml uses the legacy shorthand. This equivalent command-oriented definition shows the preferred portable shape:

name: simulation-example-workflow
spec:
  namespace: examples
  activities:
    - name: prepare
      command: {}
      cpuLimit: "1"
      memoryLimit: 128Mi
      simulation:
        model: deterministic
        durationSeconds: 4
    - name: analyze
      command: {}
      cpuLimit: "2"
      memoryLimit: 1Gi
      dependsOn: [prepare]
      simulation:
        model: deterministic
        durationSeconds: 12

Create or import it:

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  -H 'Content-Type: application/yaml' \
  --data-binary @workflow.yaml \
  "$AKOFLOW_API_URL/workflow-definitions/"

Useful definition operations are:

# List definitions
curl -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/workflow-definitions/"

# Read one definition
curl -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/workflow-definitions/simulation-example-workflow/"

# Export portable YAML
curl -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  -o exported-workflow.yaml \
  "$AKOFLOW_API_URL/workflow-definitions/simulation-example-workflow/export/"

The create response is the normalized WorkflowDefinition. Use version.id from that response when creating a planning session.

Next step

Once the workflow, execution scope, resources, and network topology exist, create a planning session.
