Cloud capacity and machine configuration

A cloud environment separates four concerns:

  1. the cached provider catalog (machines, images, disks, zones, and prices);
  2. capacity targets that planners may select;
  3. versioned machine configurations expressed as Ansible playbooks;
  4. provisioned instances and their asynchronous lifecycle operations.

Provider support in v1.0​

CapabilityGoogle CloudAWS
Store provider credentialsYesYes
Discover compute machines, images, disks, zones, and pricesYesNot yet
Provision compute capacity with TerraformYesNot yet
Transfer artifacts through object storageGCS through configured storage adaptersS3 and S3-compatible endpoints

For a runnable Google Cloud setup, continue with Configure Google Cloud. For AWS, read Configure AWS before creating an environment: v1.0 can use AWS credentials for S3 data movement, but cannot create or discover EC2 workers. This distinction prevents a stored credential from being mistaken for a working compute provider.

Synchronize the provider catalog​

Using AkôFlow Desktop​

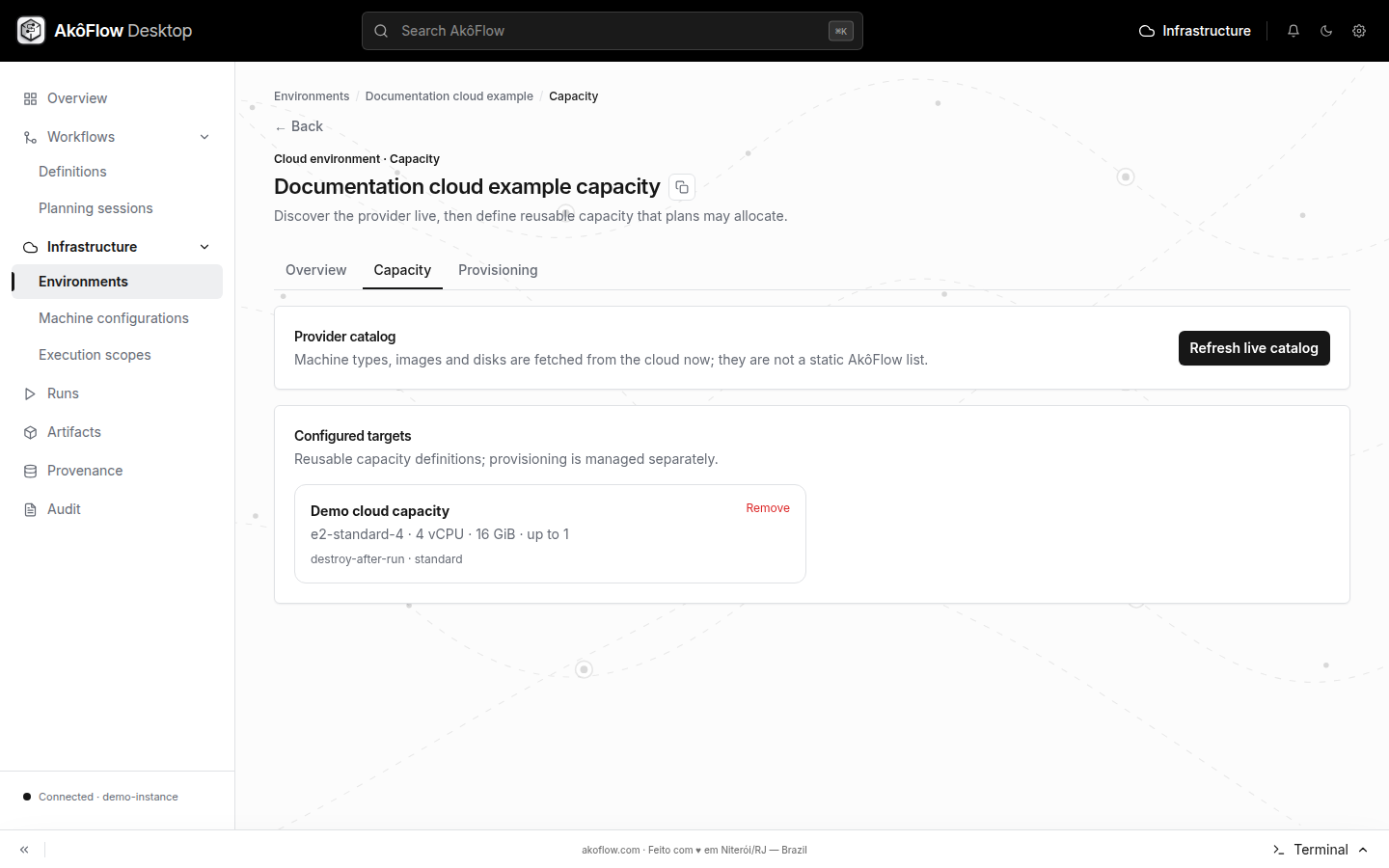

Open a cloud environment and select Cloud capacity. If no cached catalog exists, refresh it. Search and filter machine families and images, then choose a compatible disk. Displayed estimates combine catalog compute pricing and configured disk size; they are estimates rather than provider invoices.

Using the API​

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -X POST "$AKOFLOW_URL/environments/gcp-lab/cloud-catalog/refresh/"

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  "$AKOFLOW_URL/environments/gcp-lab/cloud-catalog/"

The GET endpoint returns 404 until a catalog has been synchronized. Provider credentials must already be stored and referenced by the cloud environment connection.

Create a capacity target​

Using AkôFlow Desktop​

  1. Choose a catalog machine, image, disk, and disk size.
  2. Select a zone policy, provisioning mode, maximum instance count, and lifecycle policy.
  3. Optionally attach an additional machine-configuration version.

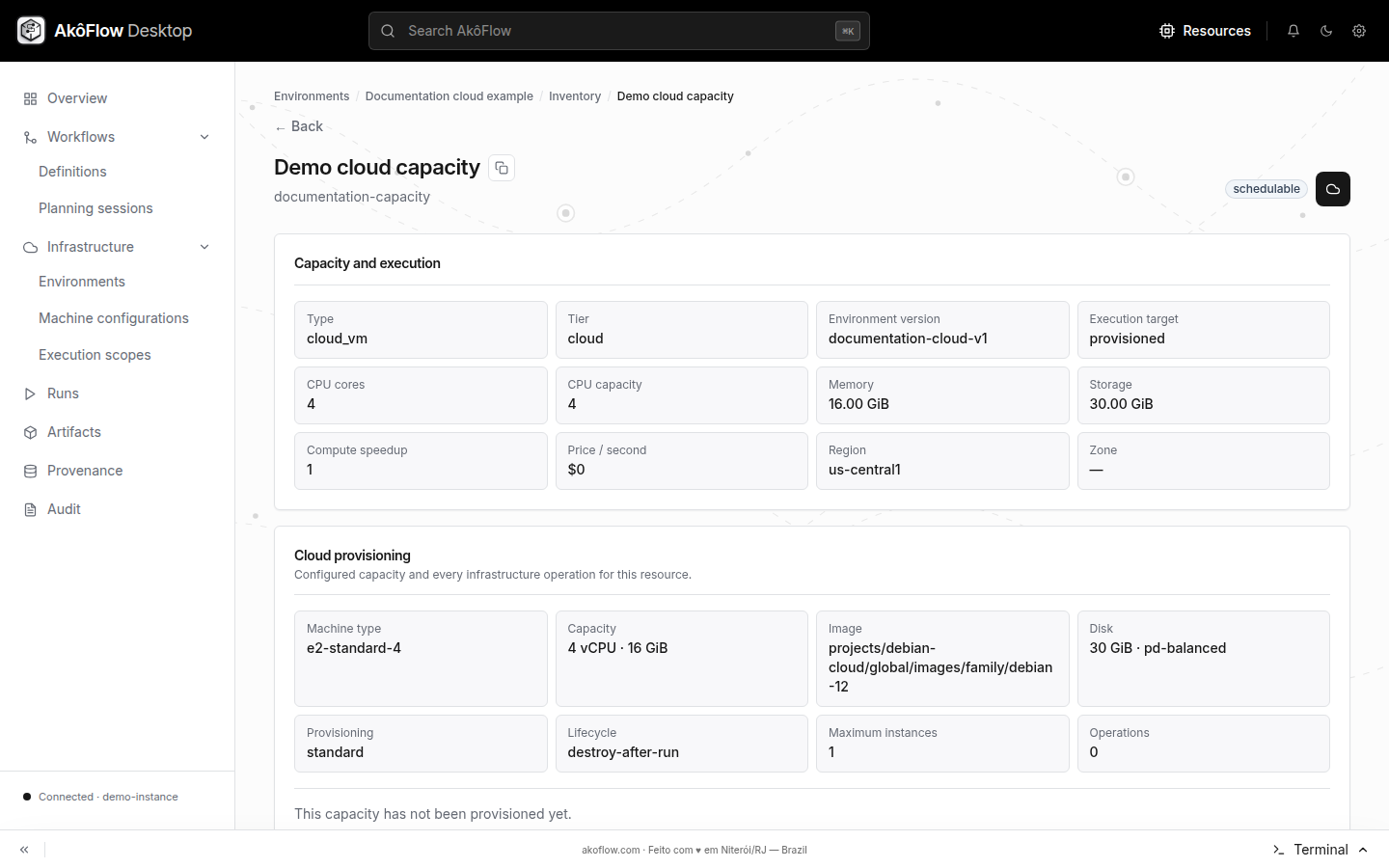

  4. Save the target. It becomes a provisioned cloud resource available to planning.

Using the API​

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' -X POST \
  "$AKOFLOW_URL/environments/gcp-lab/cloud-capacity-targets/" \
  -d '{
    "name":"E2 standard worker",
    "provider":"gcp",
    "providerMachineType":"e2-standard-4",
    "region":"us-central1",
    "zonePolicy":"any",
    "imageReference":"projects/debian-cloud/global/images/family/debian-12",
    "architecture":"x86_64",
    "vcpu":4,
    "memoryMiB":16384,
    "provisioningMode":"standard",
    "maximumInstances":2,
    "lifecyclePolicy":"destroy-after-run",
    "configuration":{"diskType":"pd-balanced","diskSizeGiB":30,"network":"default"},
    "machineConfigurations":[{"configurationVersionId":"akoflow-scientific-worker-v4","executionOrder":0,"required":true,"enabled":true}]
  }'

The server supplies the target ID and environment ID when omitted, enables the target, and creates the corresponding provisioned resource. Machine/image identifiers are provider values from the synchronized catalog.

Create and version a machine configuration​

Using AkôFlow Desktop​

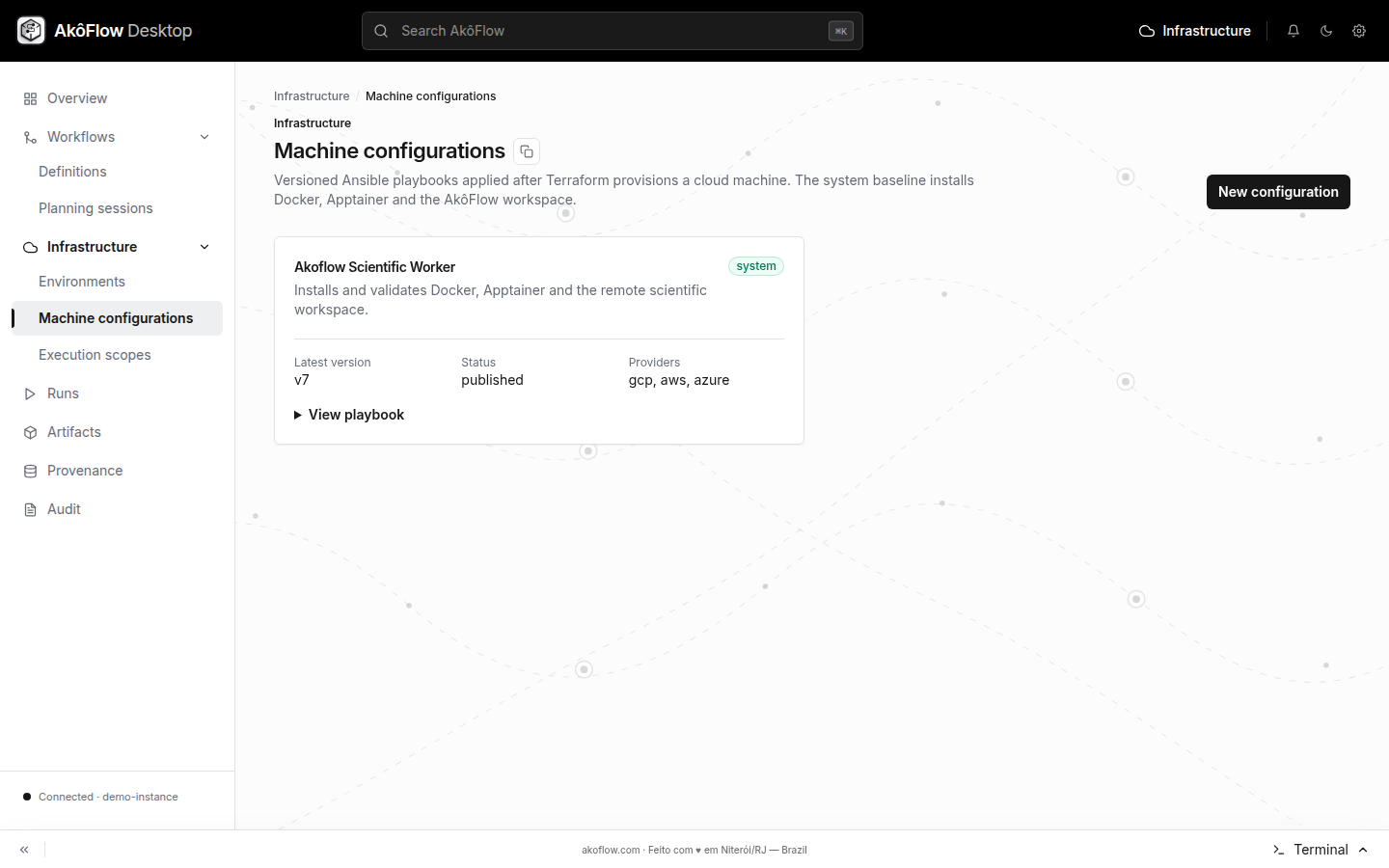

Open Infrastructure → Machine configurations. Create a named configuration, edit its Ansible playbook, validate it, and save a version. Existing capacity targets refer to a specific configuration-version ID, not to mutable editor contents.

Using the API​

Validate YAML before saving it:

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' -X POST \
  "$AKOFLOW_URL/machine-configuration-validations/" \
  -d '{"playbookYaml":"---\n- name: Configure worker\n  hosts: all\n  become: true\n  tasks:\n    - name: Install curl\n      ansible.builtin.package:\n        name: curl\n        state: present\n"}'

Create the configuration and then its first version:

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' -X POST "$AKOFLOW_URL/machine-configurations/" \
  -d '{"id":"analysis-worker","name":"Analysis worker","description":"Packages used by analysis jobs"}'

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' -X POST \
  "$AKOFLOW_URL/machine-configurations/analysis-worker/versions/" \
  -d '{"version":1,"status":"published","playbookYaml":"---\n- name: Configure worker\n  hosts: all\n  tasks: []\n","compatibility":{"providers":["gcp"]}}'

Validation checks playbook structure and returns valid, a content hash, and errors when present. It does not provision a machine or execute the playbook.

Provision and follow an instance​

Using AkôFlow Desktop​

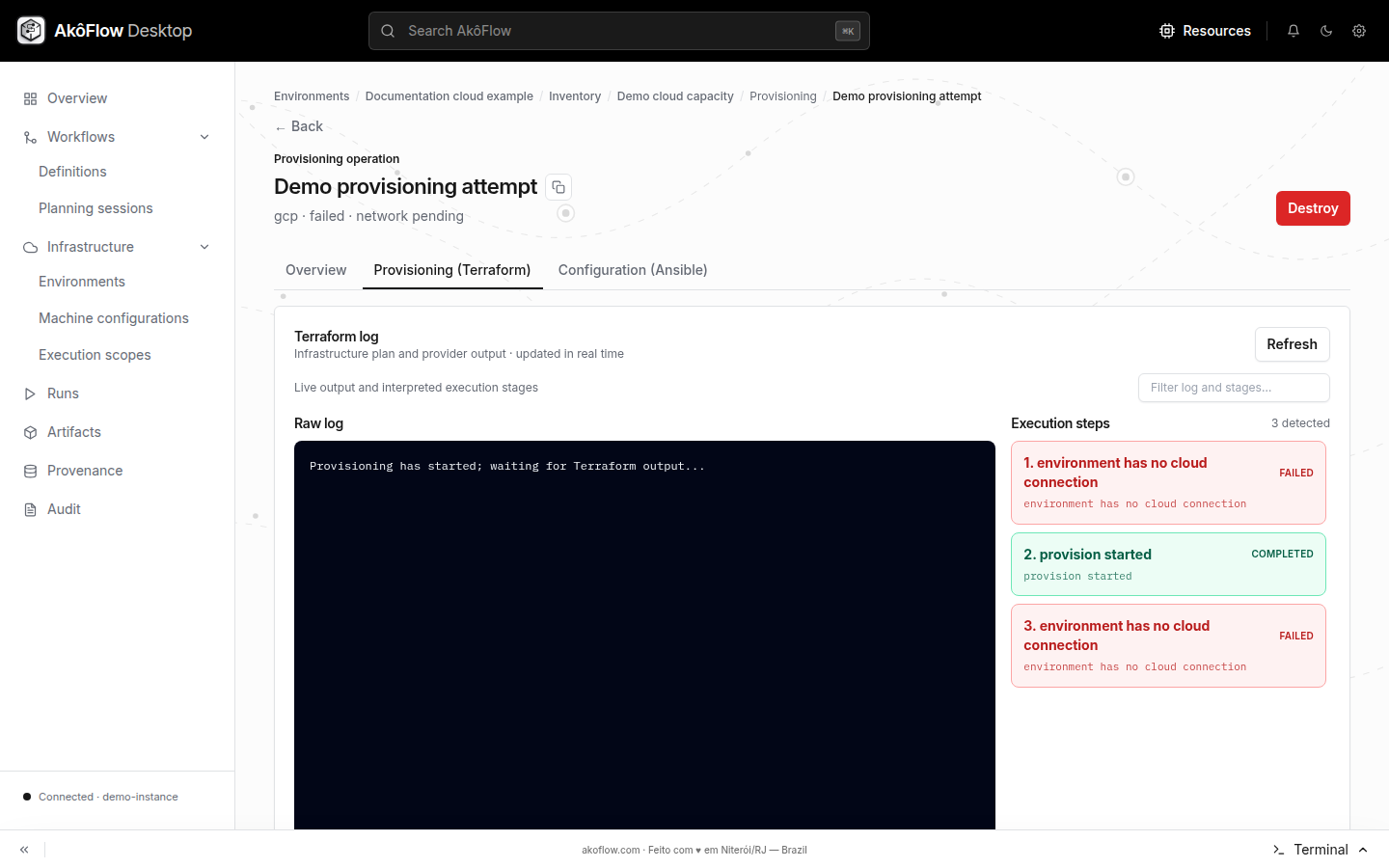

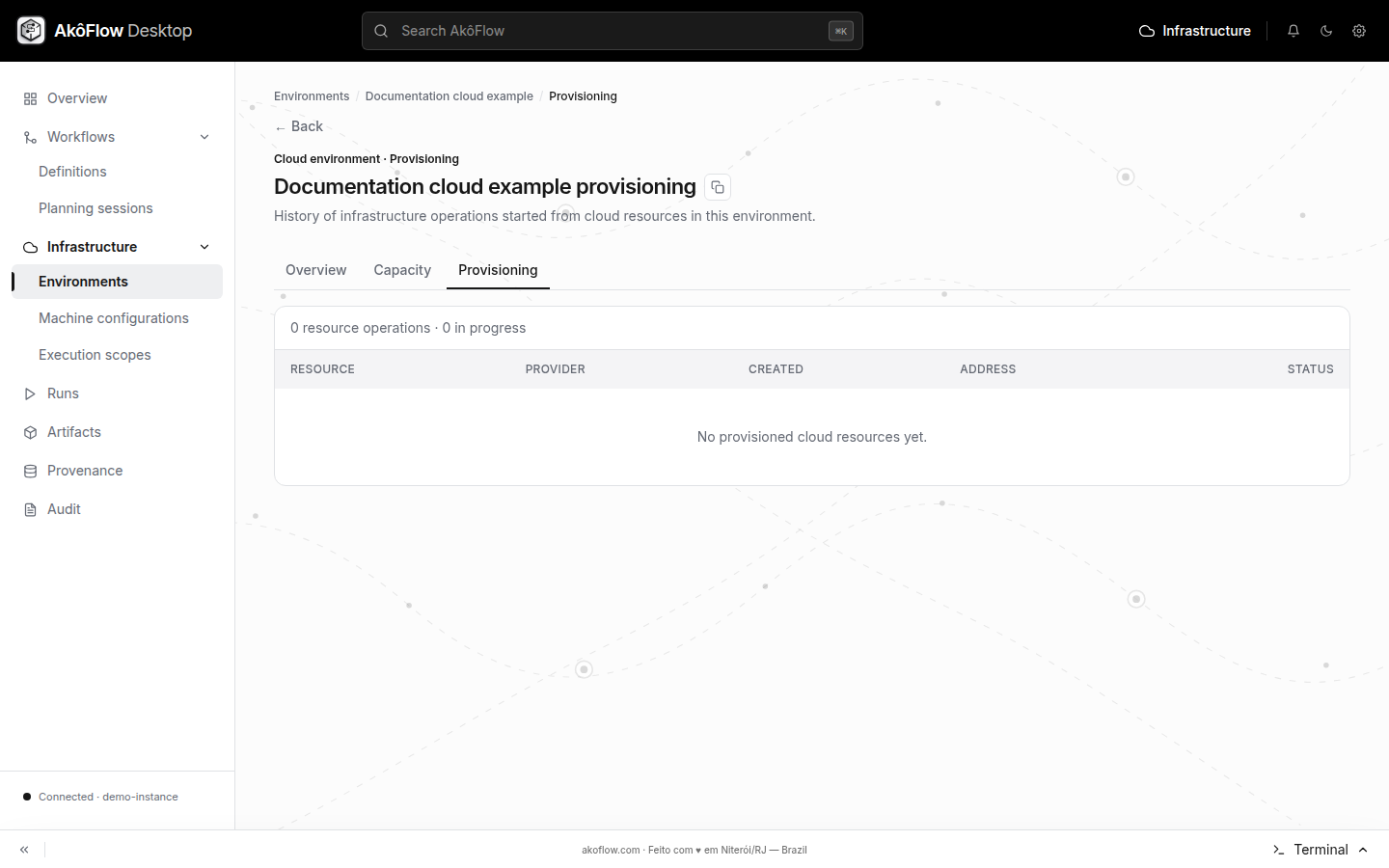

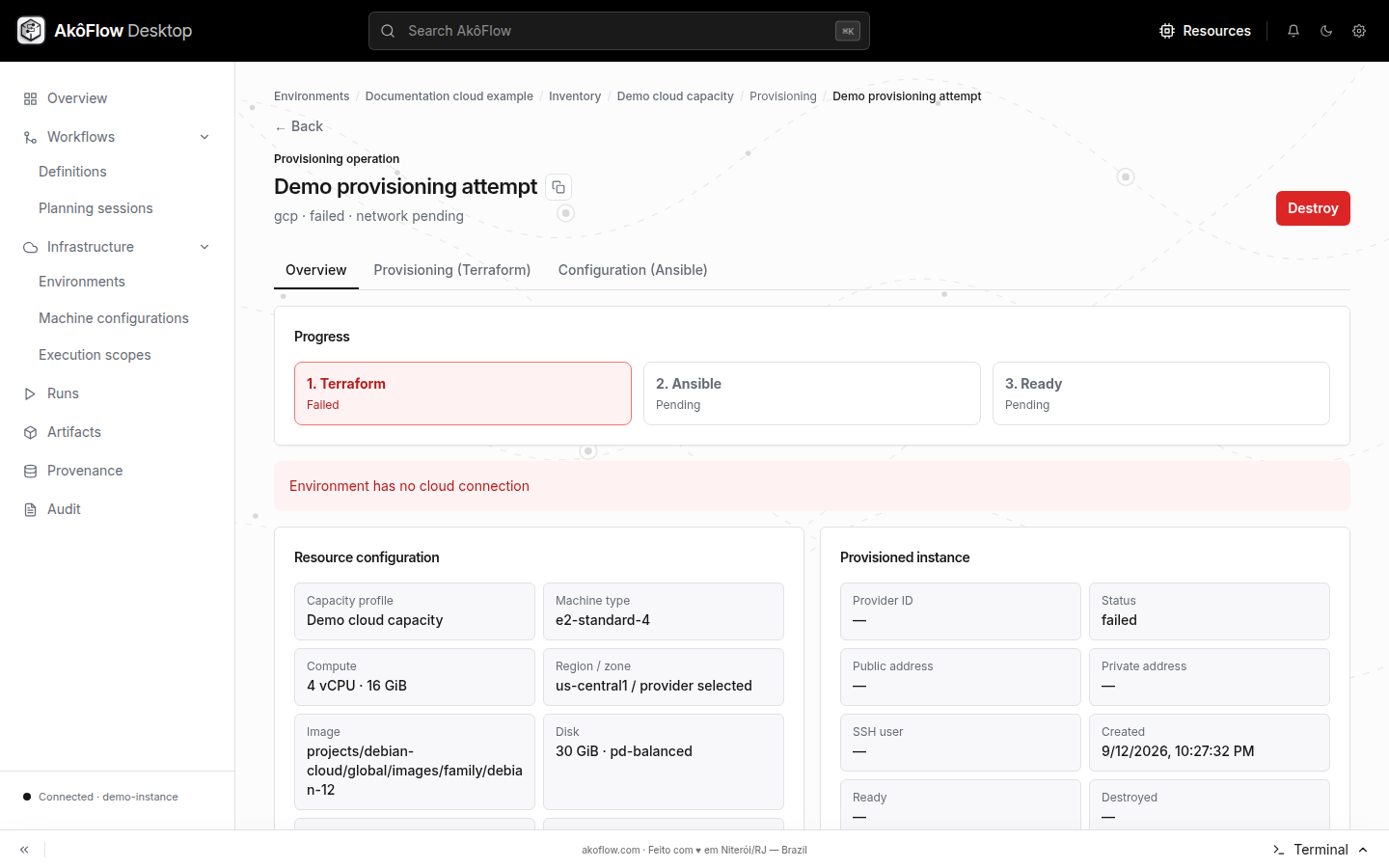

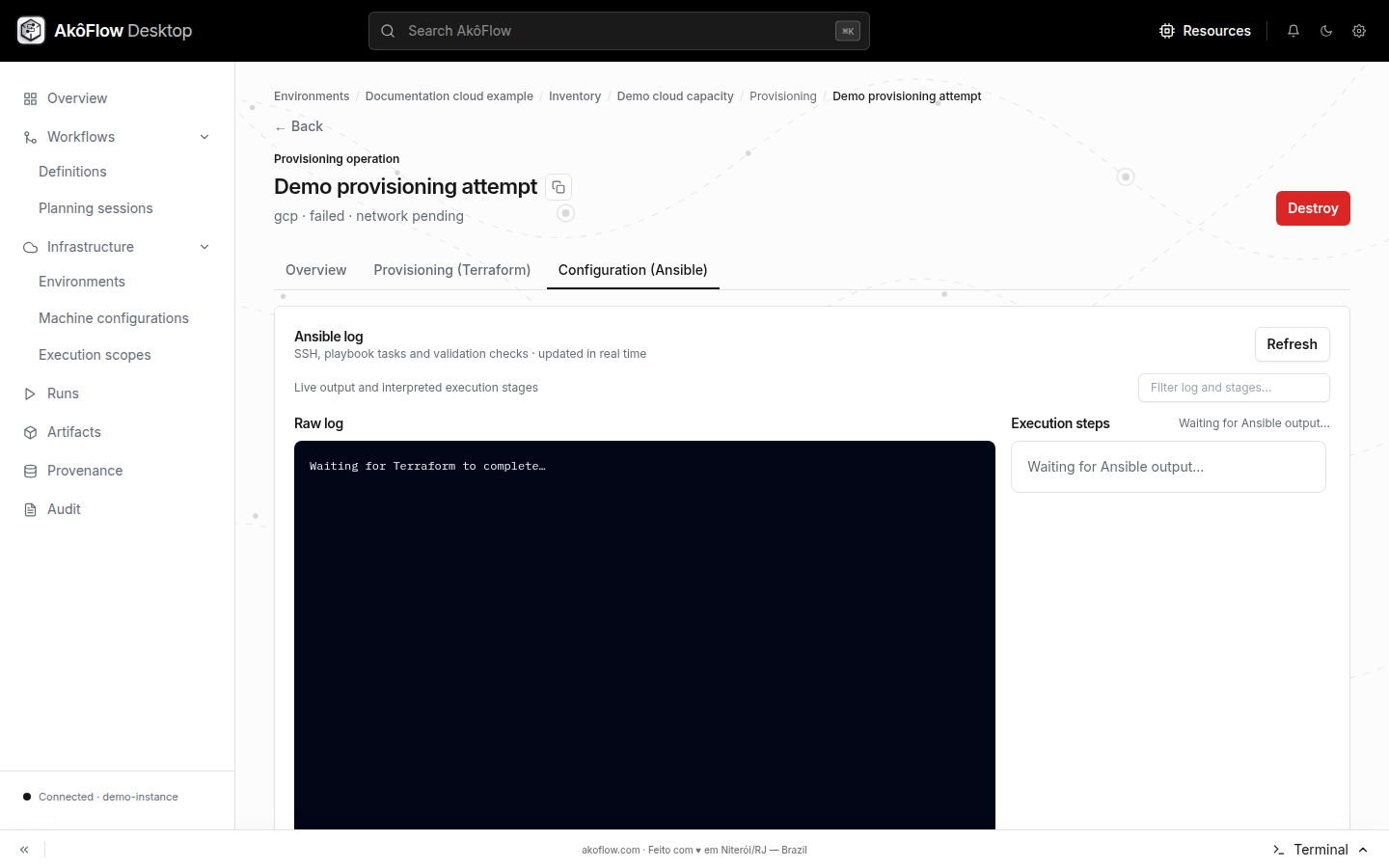

Open a cloud resource or the environment Provisioning tab and start provisioning from a capacity target. The operation view separates Terraform provisioning from machine configuration and shows events and logs as they become available. Provisioning is asynchronous.

Using the API​

curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' -X POST \
  "$AKOFLOW_URL/environments/gcp-lab/cloud-provisioning/" \
  -d '{"capacityTargetId":"<capacity-target-id>"}'

# Follow all operations, then inspect the selected operation and its events
curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" "$AKOFLOW_URL/cloud-operations/"
curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" "$AKOFLOW_URL/cloud-operations/<operation-id>/"
curl --fail-with-body -H "Authorization: Bearer $AKOFLOW_TOKEN" "$AKOFLOW_URL/cloud-operations/<operation-id>/events/"

The provisioning request queues an operation; it does not wait for the instance to become ready. Lifecycle endpoints also exist for configure, validate, start, stop, and destroy. Before destructive lifecycle actions, inspect the instance and active operation state in Desktop or through the API.
