Execute and monitor a workflow

An execution run applies one immutable schedule plan to the workflow and infrastructure snapshots supplied in its request. Real and simulated runs share the same run, activity, timing, transfer, and cost model, which makes planned-versus-observed comparison possible.

Modes and run types

• Real runs dispatch activities through execution runtimes such as a Kubernetes or SLURM adapter configured by the environment.
• Simulation runs dispatch simulation-capable activities through a simulation runtime such as SimGrid.
• Interactive sessions open a terminal against a compatible resource. They are represented in the unified run history, but are opened through the console-session API rather than the planned workflow execution request.

The run history distinguishes workflow, interactive, and standalone kinds.

Status and timing

A workflow run moves through created, running, and either completed or failed. Its activities expose the more detailed states blocked, ready, preparing, running, completed, failed, and cancelled.

Runtime handles distinguish starting, running, completed, failed, and stopped. For real runtimes, submitted time means the control plane handed work to the runtime; started time means the runtime allocated it; container-started time marks when user code could begin inside the container.

The completed trace includes:

• makespan and total cost;
• compute, transfer, queue, interference, and overhead time;
• activity placement and runtime handles;
• transferred bytes, transfer duration/cost, strategy, and route;
• observed task intervals alongside predicted assignments.

Using AkôFlow Desktop

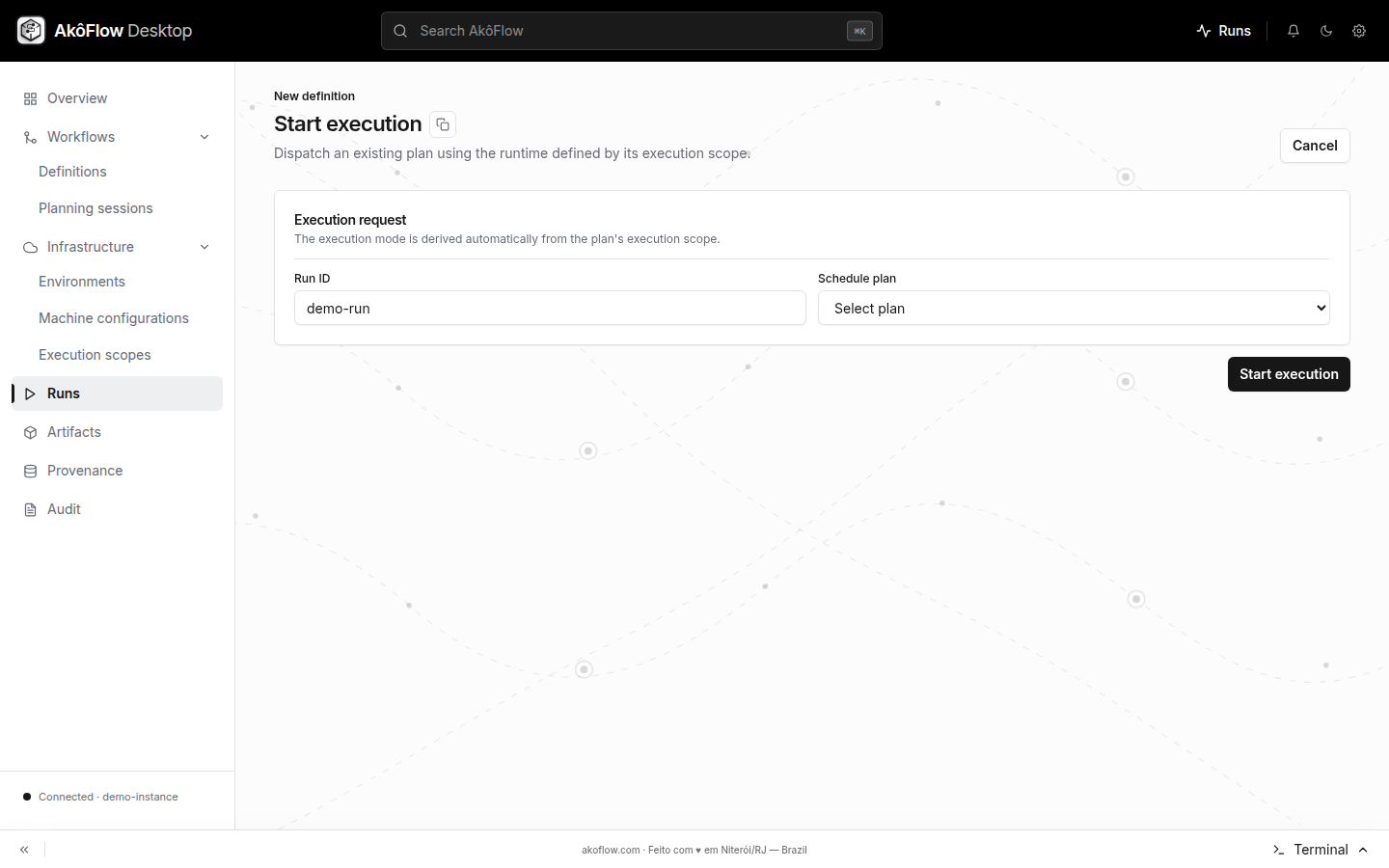

1. Open a selected or manually created schedule plan.
2. Choose the action to run it.
3. Confirm the generated run ID and review the predicted allocation timeline. The mode is derived from the plan's execution scope: simulation scopes produce simulation runs; execution scopes produce real runs.
4. Choose Start execution.
5. Open Runs to follow the unified history. Filter by type, mode, or status.

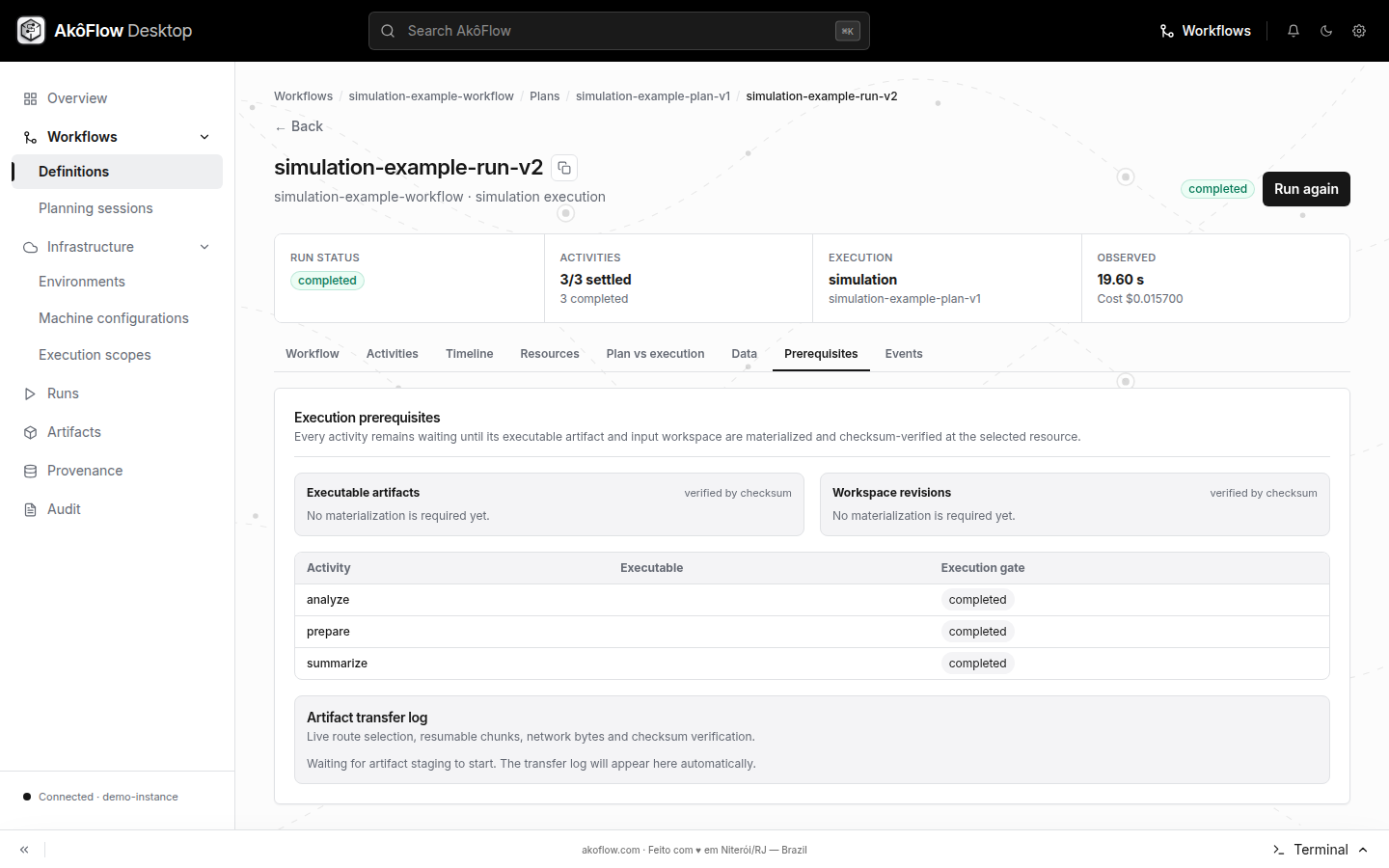

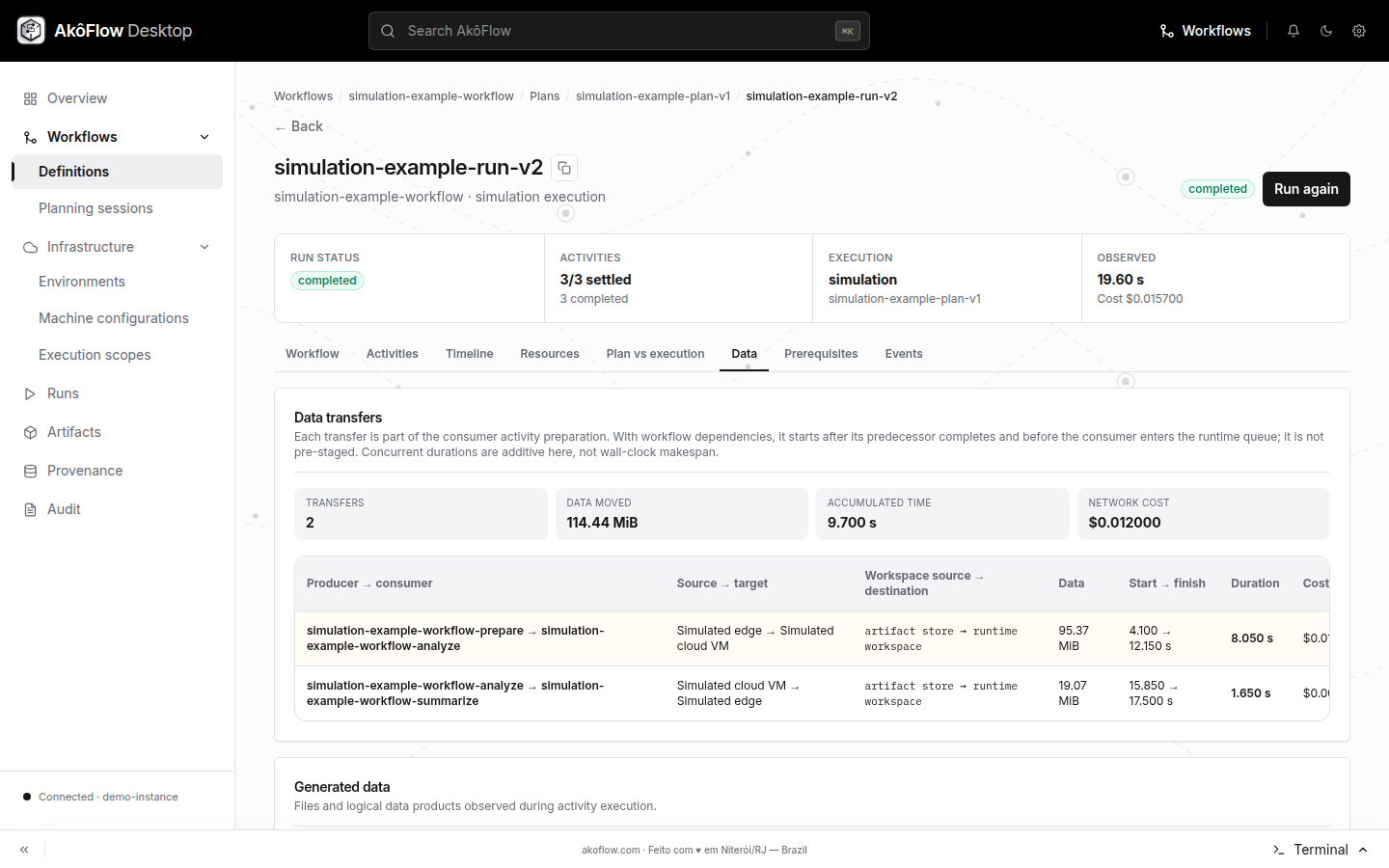

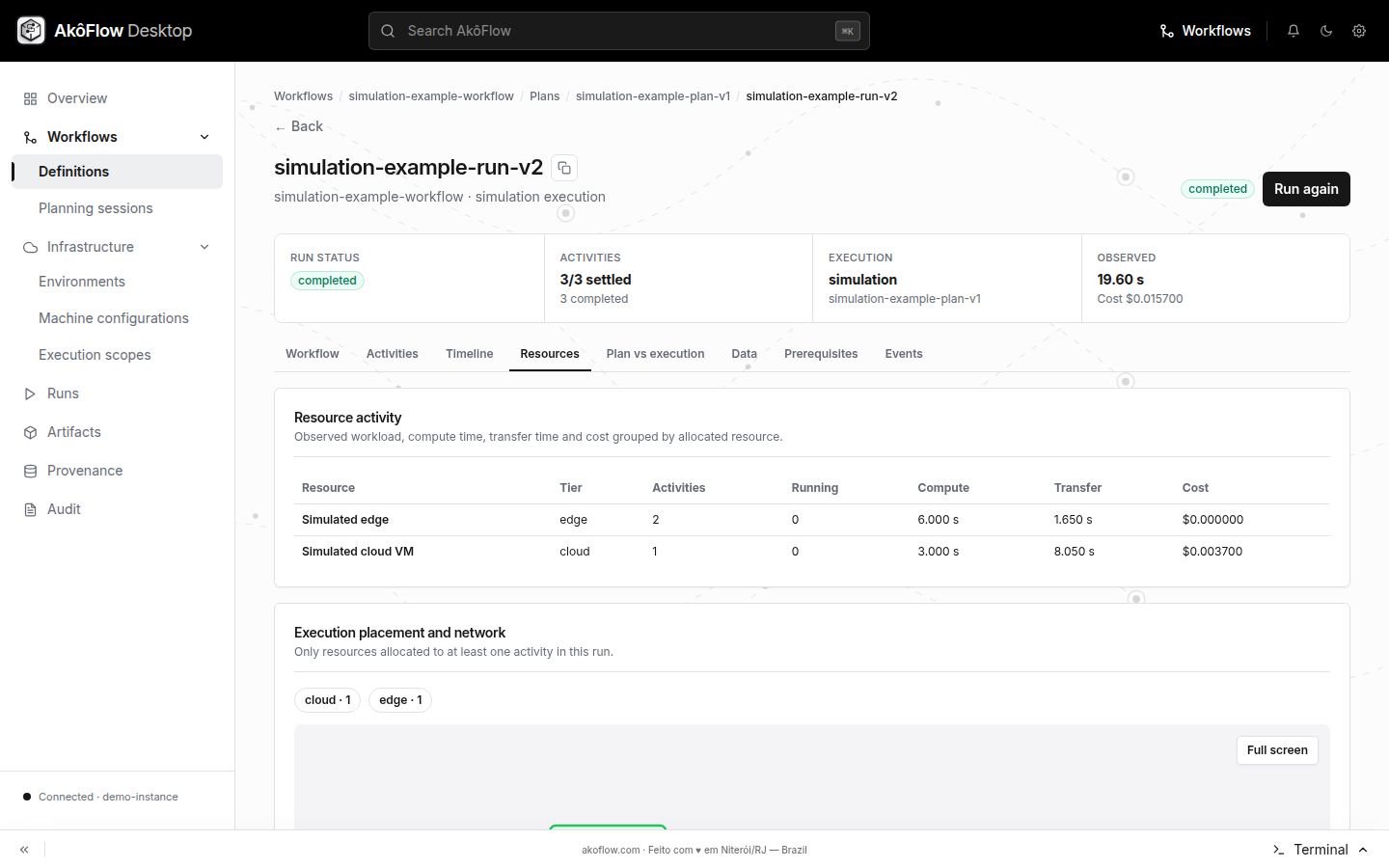

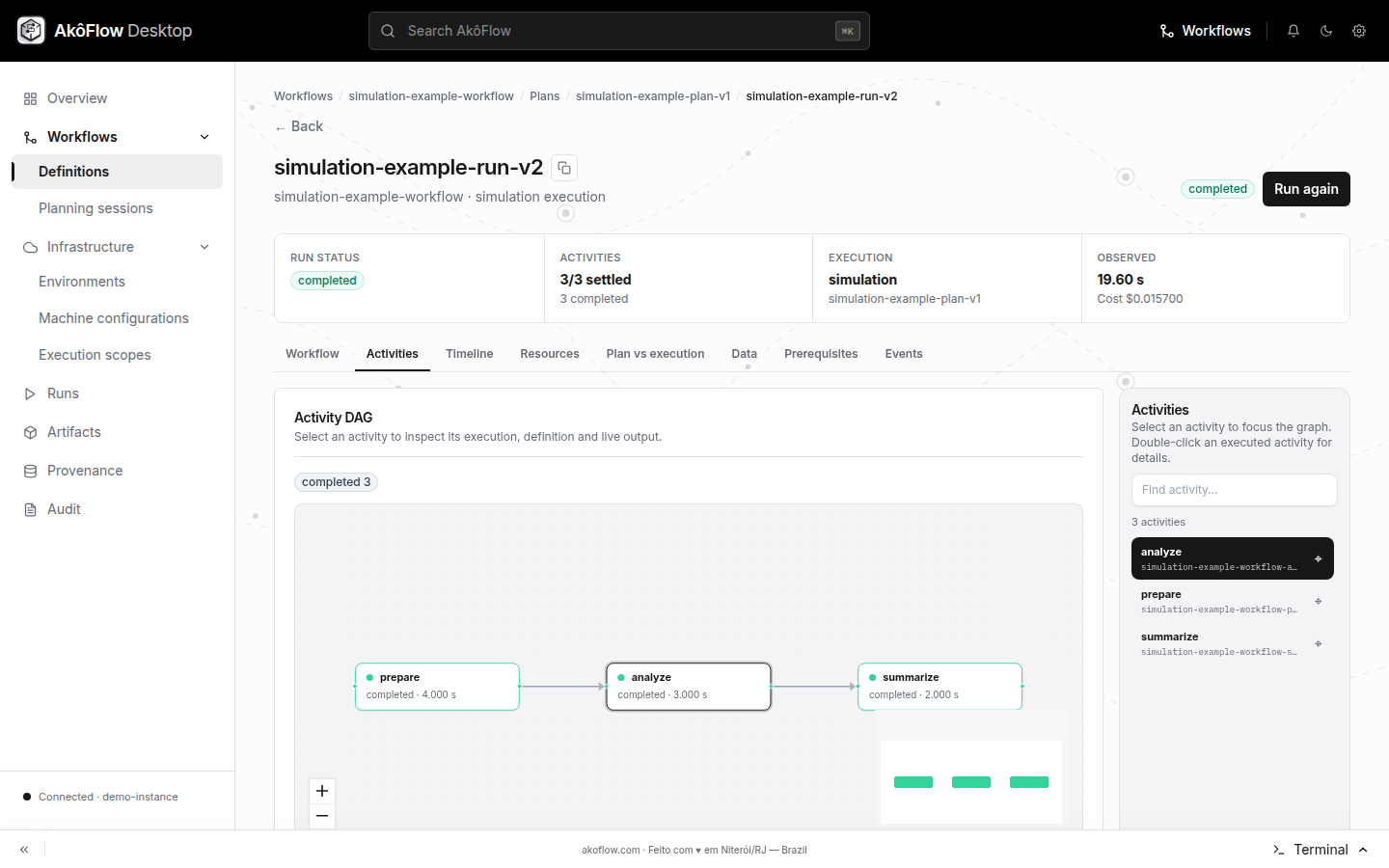

6. Open the run to inspect live activity state, logs, placement, network transfers, and execution prerequisites.

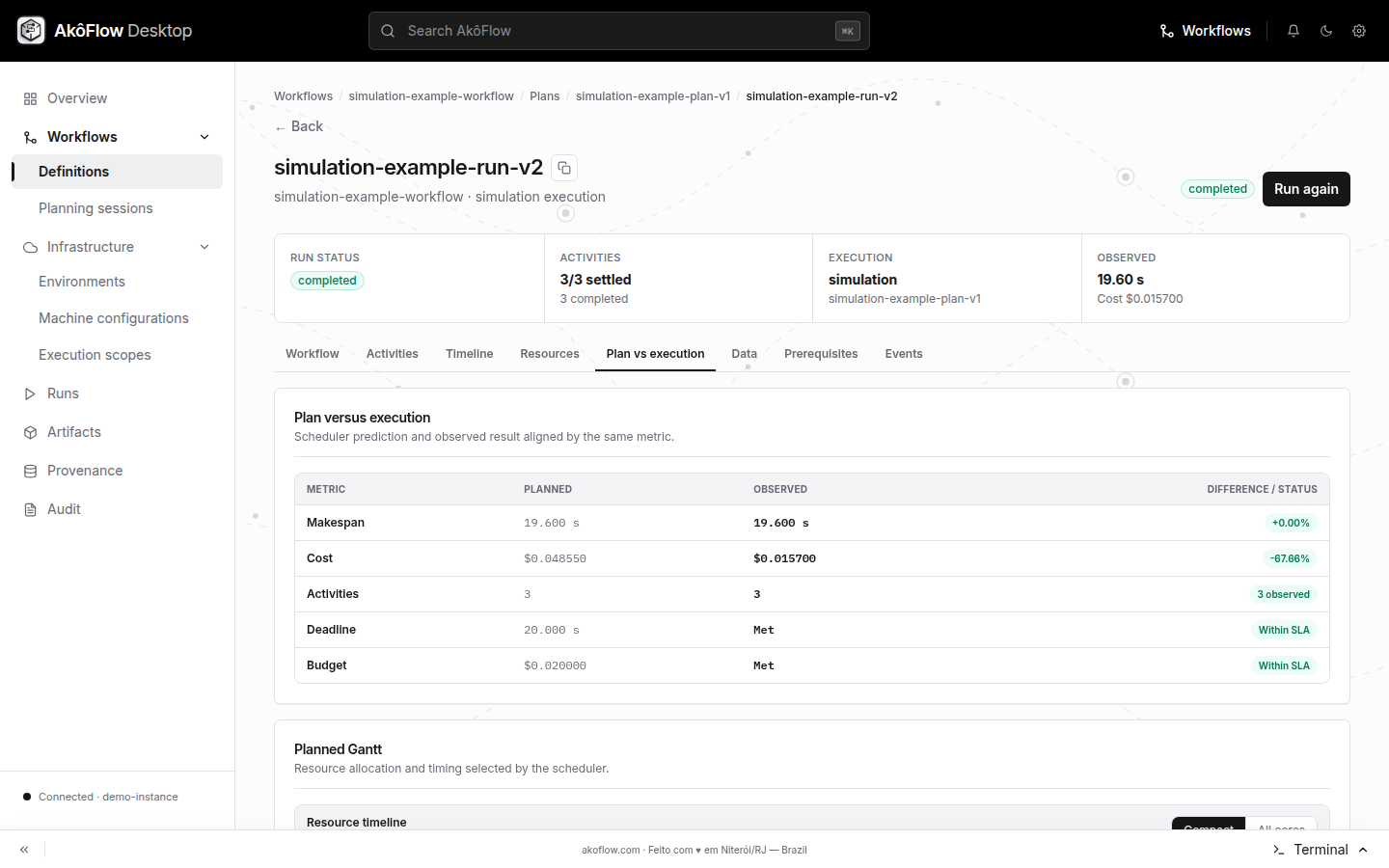

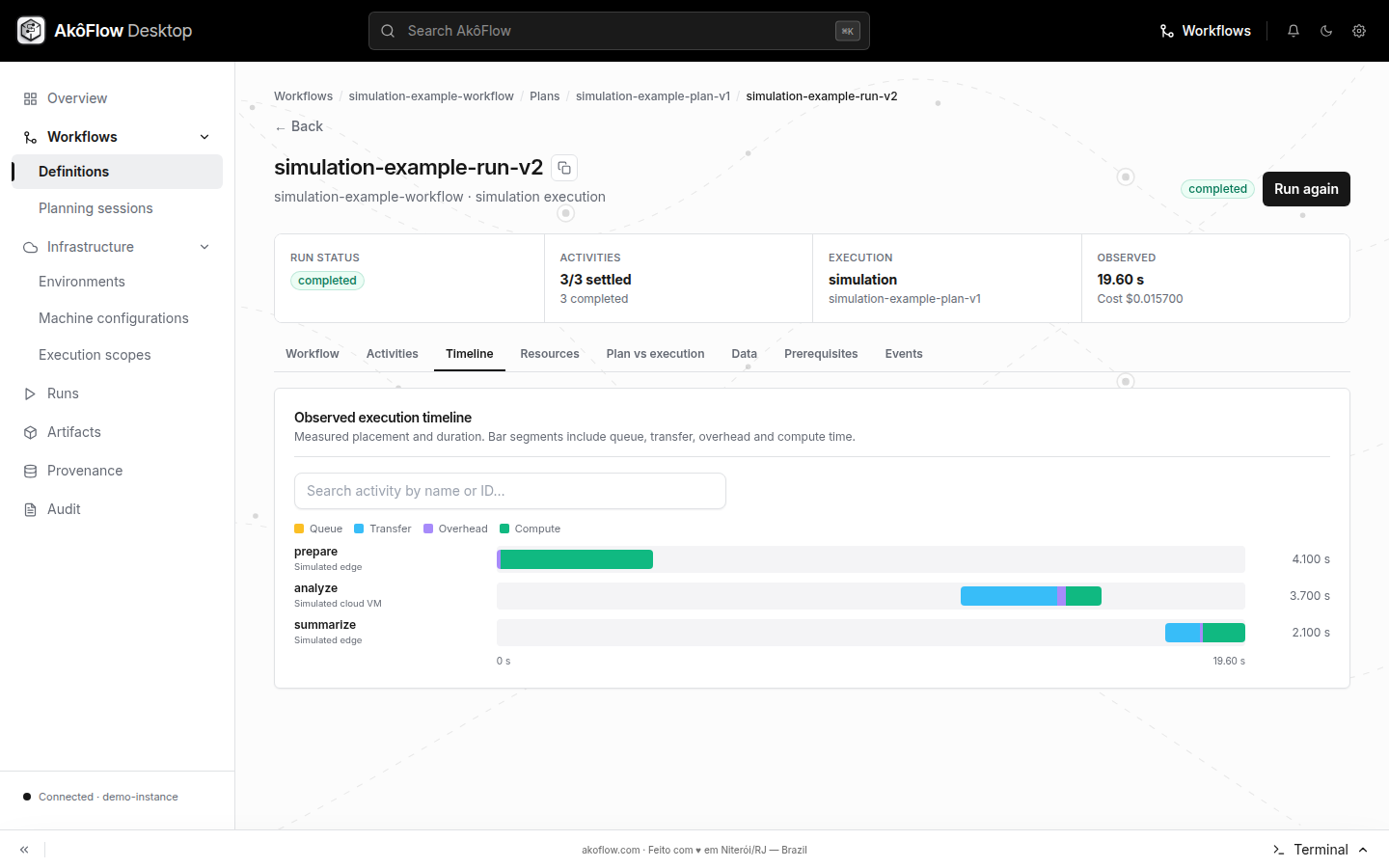

7. After completion, compare predicted and observed Gantt charts, per-activity runtime gaps, makespan, cost, and the execution-time decomposition.

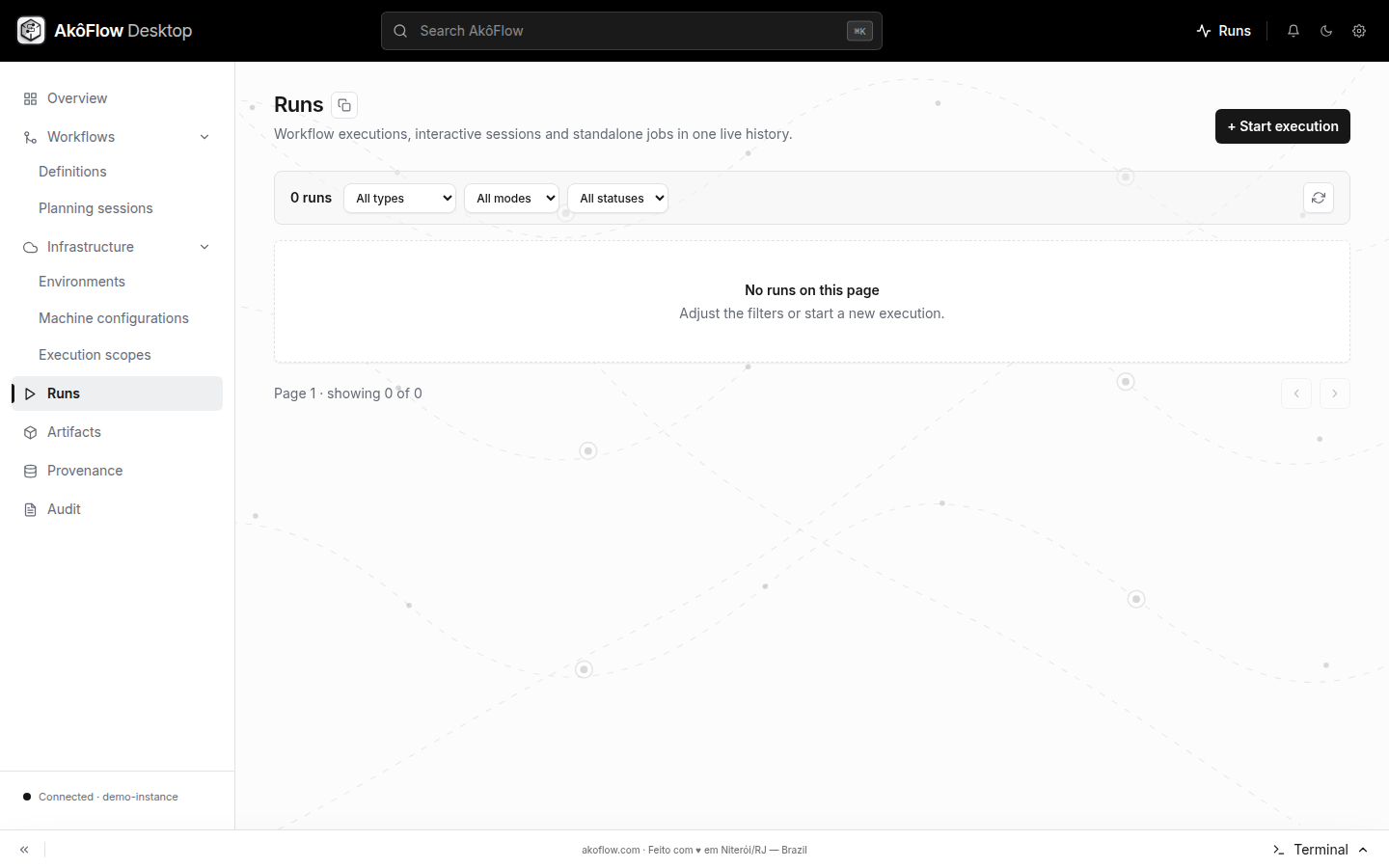

Start with the Type filter when investigating a workflow. The table then separates real and simulation runs, exposes the target and completion state, and reports activity progress. Select a row or Details to move from the compact history into the run evidence.

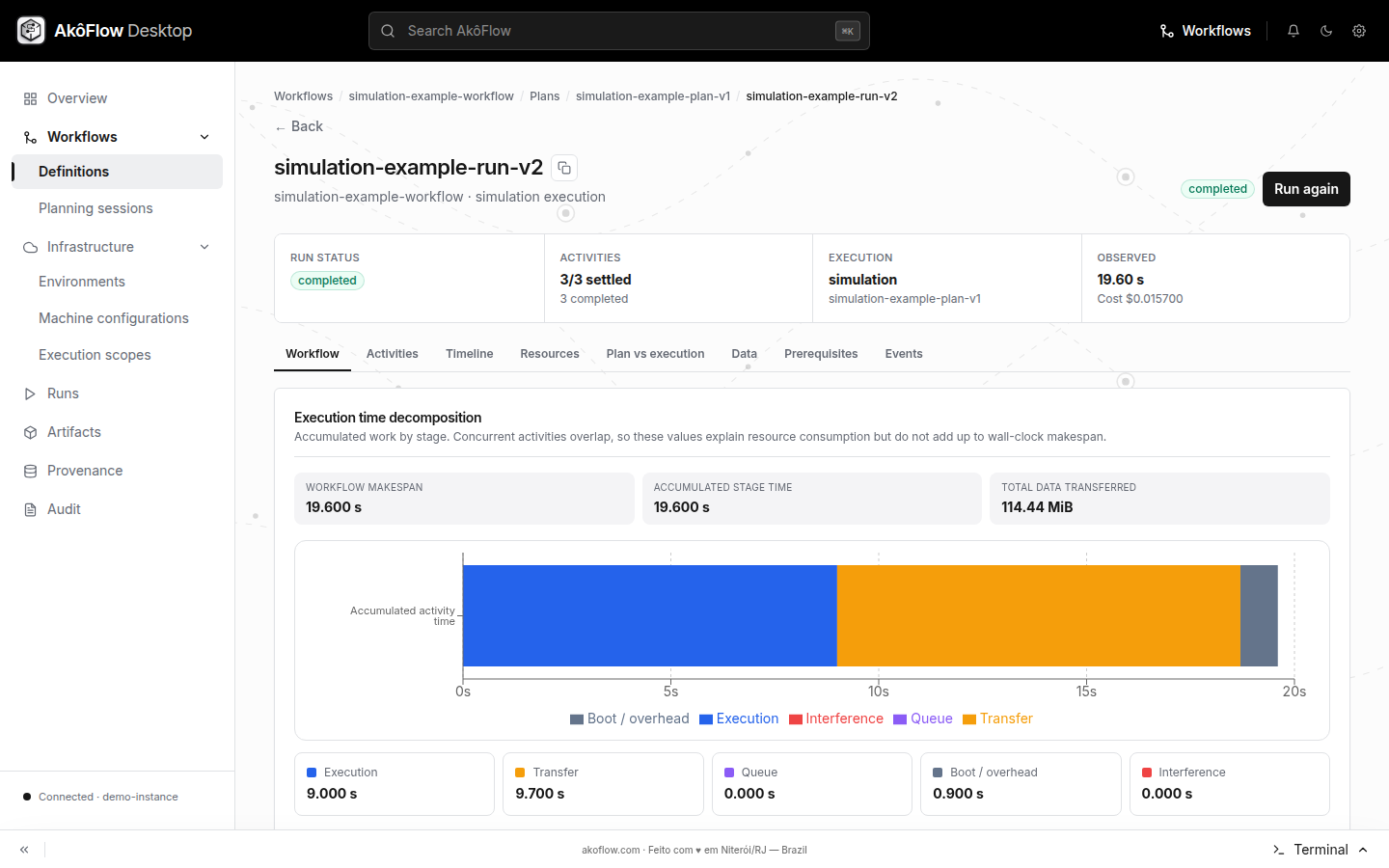

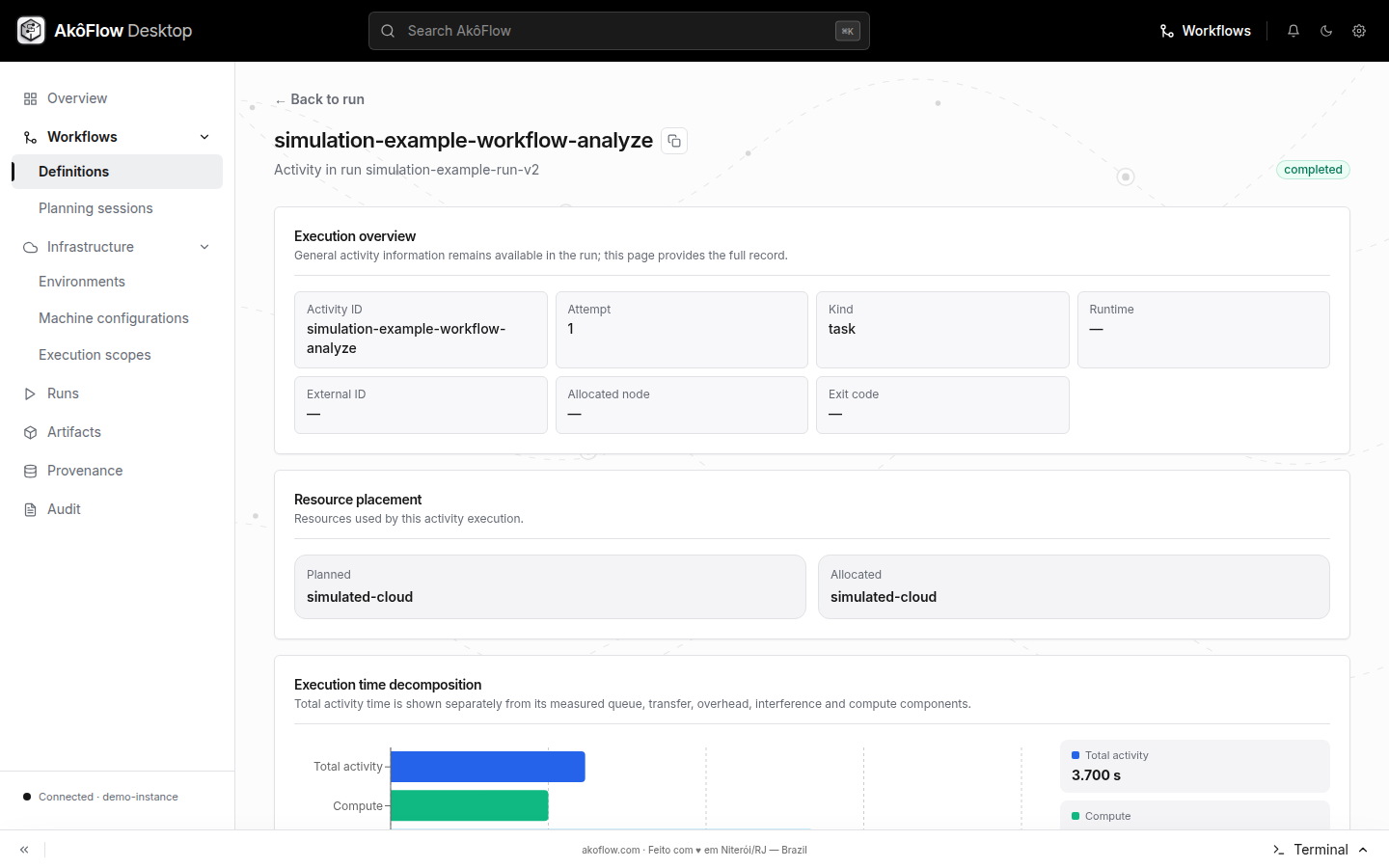

In the run detail, Workflow makespan is wall-clock completion time. Accumulated stage time is the sum of work attributed to stages across activities, so it can be greater than makespan when activities overlap. The decomposition makes transfer, execution, queue, boot and interference visible instead of treating them as a single unexplained duration.

To open an interactive terminal, use the console action for a compatible resource. The session appears with interactive runs in Runs and can be closed or have its log exported.

Using the API

POST /execution-runs/ accepts a complete, reproducible execution envelope. The checked-in files examples/simulation/execution-request.yaml and examples/kind/requests/execution-request.yaml are canonical examples for simulation and real Kubernetes execution respectively.

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  -H 'Content-Type: application/yaml' \
  --data-binary @examples/simulation/execution-request.yaml \
  "$AKOFLOW_API_URL/execution-runs/"

The request contains run, plan, workflow, executionScope, resources, runtimes, runtime bindings, the network topology, and activity profiles. Submission is asynchronous and returns 202 Accepted with the queued job. Read the run by the run.id in the request:

curl -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/execution-runs/simulation-example-run-v1/"

The detail response contains run, activities, dataTransfers, handles, and events; it can also include related infrastructure operations. List endpoints support the Desktop's run history and filters:

curl -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/execution-runs/"

Interactive terminals use the console endpoints:

# Inspect available console commands and their required arguments
curl -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/console-commands/"

# After opening a session, stream it with:
# GET /console-sessions/<session-id>/stream/
# Close it with:
# DELETE /console-sessions/<session-id>/
# Export its log with:
# GET /console-sessions/<session-id>/log/

Consult GET /console-commands/ before constructing an open-session request because compatibility and arguments depend on the resources and runtimes registered in the instance.

Investigating a failure

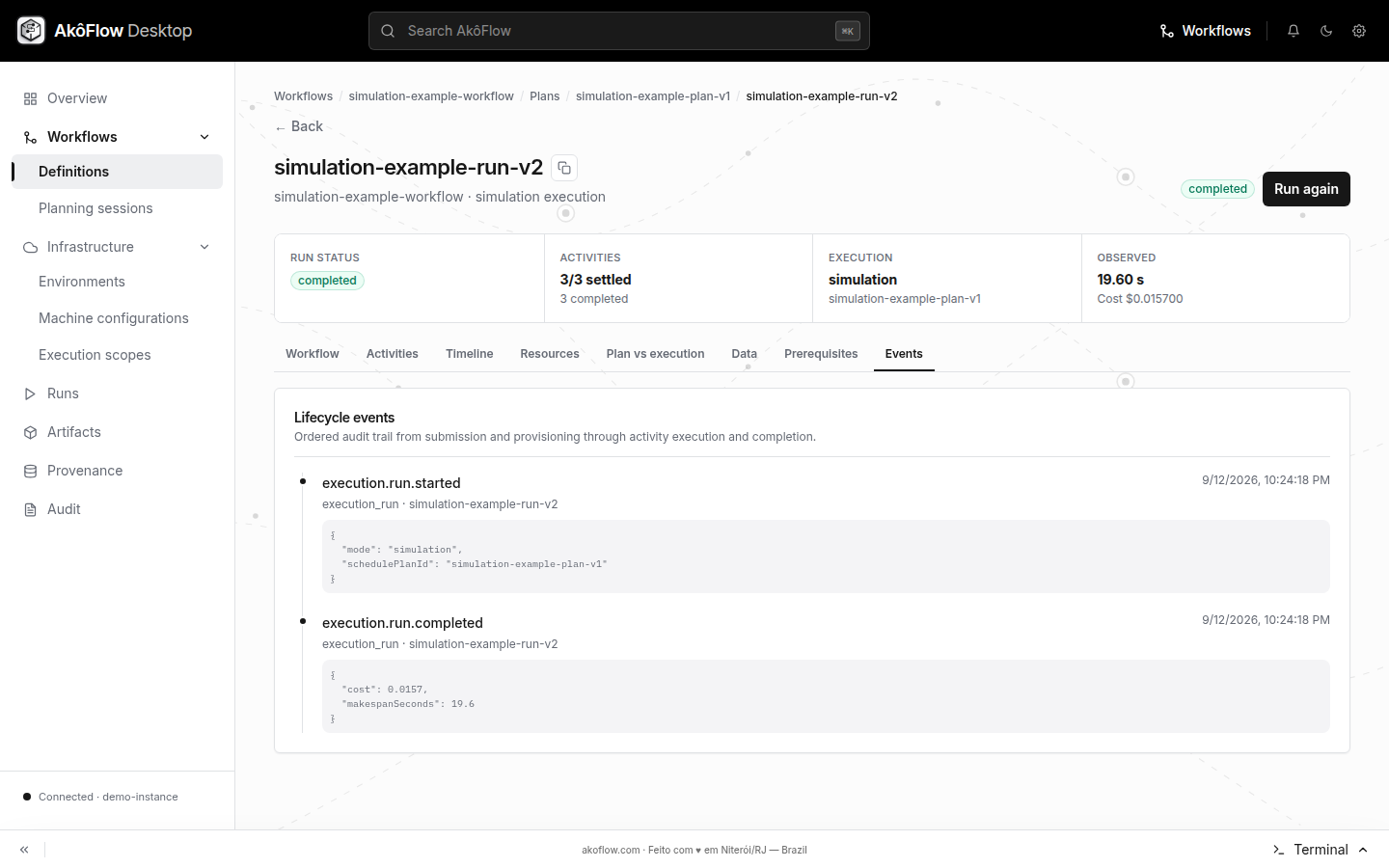

Start with run.failureReason, then inspect the failed activity, its handle failure, exit code and log, and the ordered run events. If the activity remained in preparing, inspect executable/workspace preparation and transfer records before the runtime log.
