Interactive console and commands

AkôFlow exposes two related mechanisms:

  • a console command runs one command, records stdout, stderr and exit status, and returns a durable command record;
  • an interactive session opens a remote terminal owned by the Engine and streams terminal bytes over WebSocket.

Both resolve the selected resource to a runtime and connection. They are operational access paths and produce audit events.

The Desktop does not SSH directly. The daemon resolves the selected resource and applies its credential, host key, and proxy route.

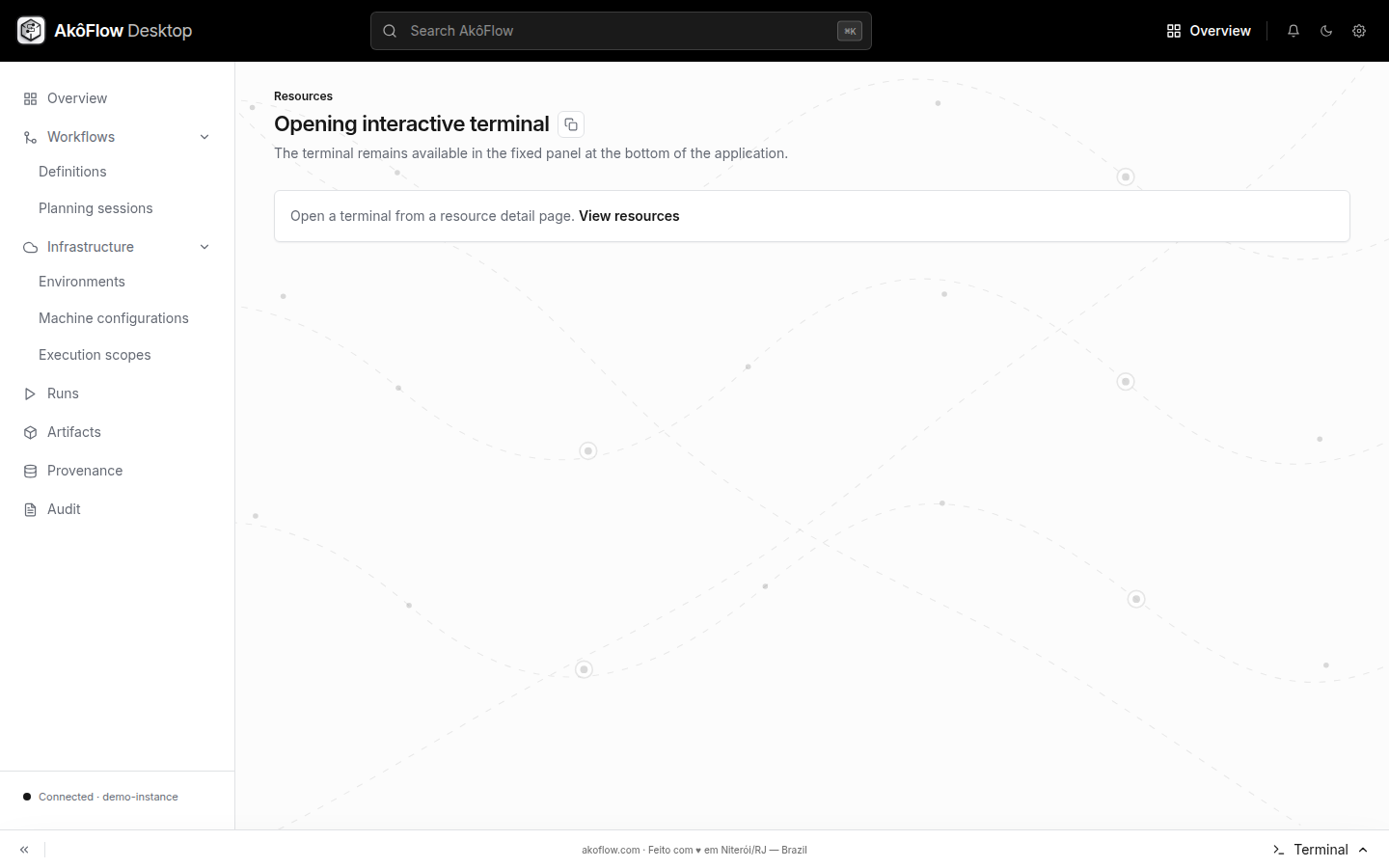

Open a terminal in Desktop​

  1. Open Infrastructure → Resources and select a login node, partition, compute node, or another SSH-capable resource.
  2. Select the terminal action on the resource detail page.
  3. AkôFlow creates the session, returns to the resource, and opens the fixed terminal panel at the bottom.
  4. Use session tabs to switch between active terminals.
  5. Use Export log to download the captured text or Close session to release the remote terminal.
Open the session from the resource, work in the persistent bottom panel, then export or close it explicitly.

The panel polls active sessions every three seconds. Switching tabs closes only the local WebSocket for the previous view; it does not intentionally close that remote session. If the active stream disappears unexpectedly, Desktop requests session closure so the remote terminal is not left consuming resources.

When the terminal action is unavailable​

The action appears only after AkôFlow can resolve all three layers: a resource, a runtime binding that supports interactive execution, and a usable connection/credential. Check the resource health and binding first. For an HPC cluster, select the login node rather than an abstract cluster or a batch-only partition. For a proxied site, the daemon must use the connection that contains the proxy route.

Open and manage a session through the API​

export AKOFLOW_URL='http://127.0.0.1:<daemon-port>/akoflow-api'
export AKOFLOW_TOKEN='<daemon-token>'

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' \
  -X POST "$AKOFLOW_URL/console-sessions/" \
  -d '{"resourceId":"hpc-login","actorId":"researcher@example.org"}'

The created session has starting, connected, closed, or failed status and returns the resolved runtimeId and connectionId. resourceId is required. Creation returns 422 when resolution or terminal startup fails and 503 when interactive console support is unavailable.

List and close sessions:

curl -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  "$AKOFLOW_URL/console-sessions/"

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -X DELETE "$AKOFLOW_URL/console-sessions/$SESSION_ID/"

Closure succeeds with 204 No Content; an unknown session returns 404.

Stream protocol​

Connect a WebSocket client to:

ws://127.0.0.1:<daemon-port>/akoflow-api/console-sessions/<session-id>/stream/

Use wss when the HTTP endpoint uses HTTPS. Ordinary text or binary WebSocket messages are terminal input. Resize messages are JSON:

{"type":"resize","rows":40,"columns":120}

The server streams terminal output back as WebSocket messages. Because browser WebSocket APIs cannot attach an Authorization header, deployment authentication and origin policy for this route must be configured consistently with the Desktop runtime; do not expose the daemon publicly.

Download the archived session log:

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  "$AKOFLOW_URL/console-sessions/$SESSION_ID/log/" \
  --output "akoflow-$SESSION_ID.log"

The response is UTF-8 text. A missing session log returns 404; unavailable console support returns 503.

Run a one-shot command​

The current Desktop focuses on the interactive terminal. Use the HTTP API for repeatable one-shot diagnostics:

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' \
  -X POST "$AKOFLOW_URL/console-commands/" \
  -d '{
    "resourceId":"hpc-login",
    "actorId":"researcher@example.org",
    "command":"hostname && uname -a",
    "workingDirectory":"/tmp",
    "environment":{"LC_ALL":"C"},
    "cpuCores":1,
    "memoryBytes":268435456,
    "timeoutSeconds":30
  }'

resourceId and command are required. The default timeout is 30 seconds and the maximum is 3,600 seconds. The returned record has running, completed, or failed status and may include stdout, stderr, exitCode, failure and the provider externalId.

List recent commands:

curl --get --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  --data-urlencode 'limit=50' \
  "$AKOFLOW_URL/console-commands/"

Command creation returns 422 for an unknown/unbound resource, invalid input, an excessive timeout, or runner failure. It returns 503 if console commands are unavailable.

Access and safety​

  • Authorize the Engine-managed public key on every SSH hop before opening a session.
  • Select a resource with a usable runtime binding and connection. A resource existing in inventory is not by itself sufficient.
  • Imported instance snapshots are read-only; opening, writing to, or closing a session is blocked with 423 Locked.
  • Terminal logs may contain command output and secrets printed by programs. Treat exported logs as sensitive operational data.
  • Close sessions when finished; closing the detail page alone does not close a daemon-owned session.
