Credentials and SSH service keys

AkôFlow stores secret material in the Engine and places a credentialRef in connection definitions. The renderer sends a secret only when it is first saved or imported; list operations return references or public metadata, never the original private key or bearer token.

Generate an SSH service key​

Using AkôFlow Desktop​

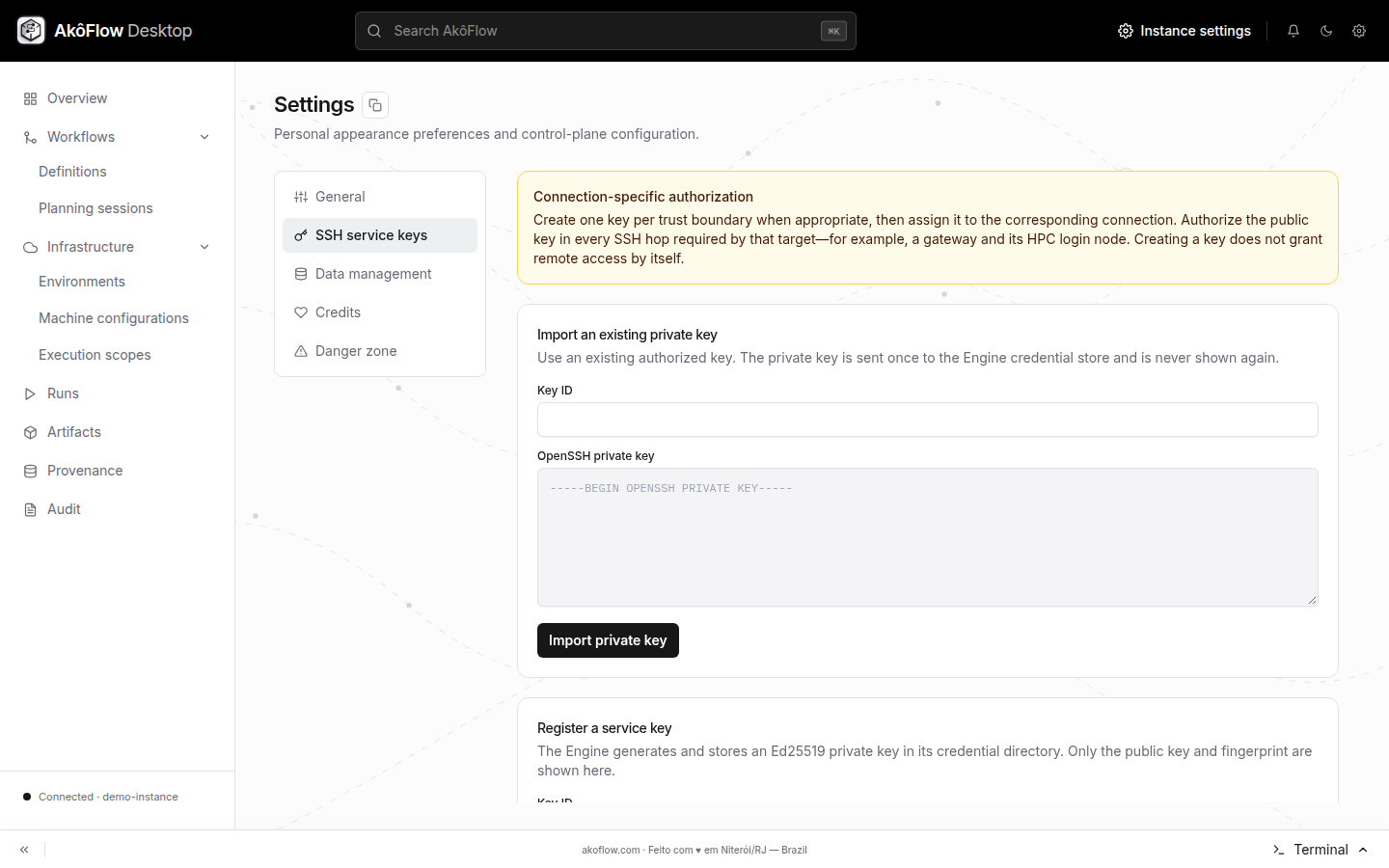

  1. Open Settings → SSH service keys.
  2. Under Register a service key, enter a key ID and optional public-key comment.
  3. Select Generate key.
  4. Copy the public key and authorize it on every SSH hop required by the target—for example, both a gateway and its HPC login node.

The Engine generates an Ed25519 key. IDs must start with an ASCII letter or digit, may then contain letters, digits, _ or -, and may contain at most 64 characters. The private file is stored with mode 0600.

Using the API​

export AKOFLOW_URL='http://127.0.0.1:<daemon-port>/akoflow-api'
export AKOFLOW_TOKEN='<daemon-token>'

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' \
  -X POST "$AKOFLOW_URL/ssh-keys/" \
  -d '{"id":"plafrim-service","comment":"akoflow@plafrim"}'

The response contains id, credentialRef, publicKey, and SHA-256 fingerprint. A duplicate or invalid ID returns 422; missing key-management support returns 503.

Import an existing OpenSSH private key​

Using AkôFlow Desktop​

  1. Open Settings → SSH service keys.
  2. Enter a new Key ID under Import an existing private key.
  3. Paste the OpenSSH private key and select Import private key.

The private key is sent once to the Engine, validated with ssh-keygen, stored in the credential directory and never displayed again.

Using the API​

Avoid putting a private key directly in shell history. Create a JSON payload with a tool that reads a protected file:

jq -n \
  --arg id 'existing-hpc-key' \
  --rawfile privateKey "$HOME/.ssh/id_ed25519" \
  '{id:$id, privateKey:$privateKey}' > /tmp/akoflow-ssh-key.json

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' \
  -X POST "$AKOFLOW_URL/ssh-keys/import/" \
  --data-binary @/tmp/akoflow-ssh-key.json

Remove the temporary payload securely according to your operating-system policy. An empty or invalid private key, invalid/duplicate ID, or ssh-keygen failure returns 422.

List public metadata at any time:

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  "$AKOFLOW_URL/ssh-keys/"

There is currently no SSH-key deletion endpoint. Manage key lifecycle deliberately and rotate authorization on remote systems when a key should no longer be trusted.

Assign a key to a connection​

Generating a key does not grant access. A connection must reference it, and the public key must be authorized remotely.

Using AkôFlow Desktop​

  1. On a managed key card, choose Assign to SSH connection.
  2. Select the environment and connection.
  3. Select Assign / update key.
  4. Run the connection health check from the environment.

Assignment changes only credentialRef; it preserves the connection's endpoint, user and configuration.

Using the API​

Read the current environment definition first so you preserve every connection field. Then update the connection with the credentialRef returned above:

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' \
  -X PUT "$AKOFLOW_URL/environment-connections/hpc-ssh/" \
  -d '{
    "id":"hpc-ssh",
    "environmentId":"plafrim",
    "name":"PlaFRIM login",
    "type":"ssh",
    "endpoint":"plafrim.example.org:22",
    "username":"researcher",
    "credentialRef":"<credentialRef returned by /ssh-keys/>"
  }'

Kubernetes bearer tokens​

The Desktop environment connection flow stores a Kubernetes token and retains only its reference. The direct API is:

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_TOKEN" \
  -H 'Content-Type: application/json' \
  -X POST "$AKOFLOW_URL/kubernetes-tokens/" \
  -d '{"id":"research-cluster","token":"<bearer-token>"}'

The response is {"credentialRef":"..."}. Empty/invalid values return 422; unavailable credential storage returns 503.

Cloud credentials​

Cloud onboarding similarly sends provider credential JSON to /cloud-credentials/ and stores only the returned reference. Validation is a separate operation at /cloud-credentials/validate/; see Cloud capacity for provider-specific fields and the complete flow.

Security boundaries​

  • Do not place private keys or tokens in workflow YAML, resource metadata, screenshots, logs, or documentation examples.
  • API Bearer authentication protects transport to the Engine; credentialRef authorizes a provider operation after the request reaches the Engine.
  • Instance export redacts credentials and credential references. Imported snapshots therefore cannot reconnect until you return to a writable instance and configure credentials there.
  • If SSH uses a gateway or proxy command, authorize and validate every hop. forwardAgent and proxy settings are connection configuration, not substitutes for an Engine-managed key.
  • A leaked public key does not reveal the private key, but remote authorized_keys entries still determine where that key can authenticate.
