Connect Google Cloud and verify the catalog

This tutorial connects Google Cloud, the compute provider available in the current Cloud on demand form. Its result is a registered environment and a synchronized catalog. It does not provision a VM.

AWS support is currently for S3 data movement, not EC2 discovery/provisioning. For that separate task use Configure AWS.

Before you begin

Complete installation checks. Obtain a GCP project and an approved service-account JSON credential from your cloud administrator. The project needs the APIs and access described in Configure Google Cloud. Read that guide's access inventory; it distinguishes source-audited calls from minimum IAM permissions that still require validation in a disposable project.

The service account belongs to Google Cloud. Creating an AkôFlow environment does not create the project, service account, billing configuration or IAM grants.

Through the interface

1. Open the cloud form

Go to Infrastructure → Environments → Connect environment and select Cloud on demand. Keep Provider set to Google Cloud.

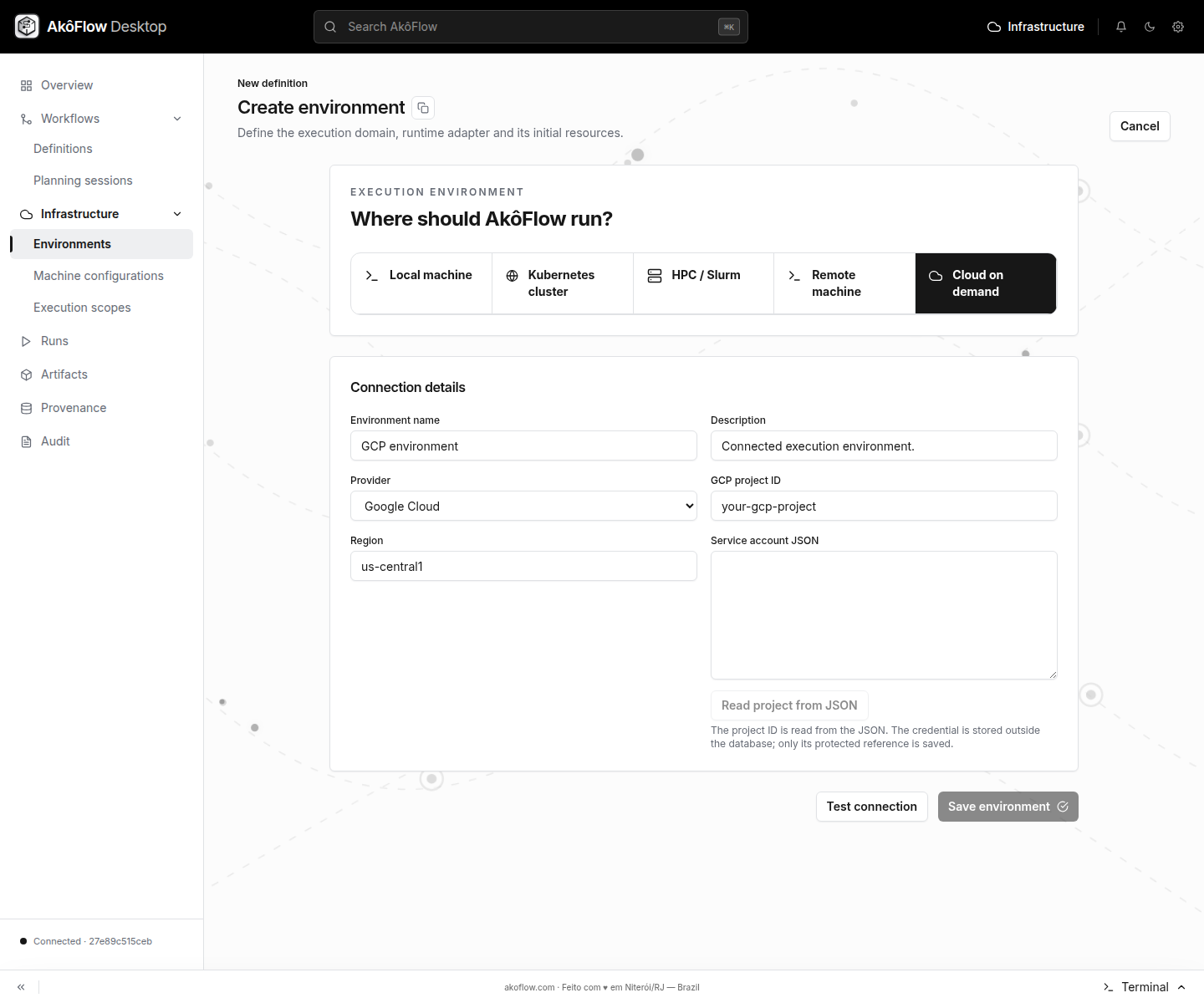

Captured from the official v1.0.8 Linux application through Chromium DevTools, 2026-09-12. The project is a placeholder and the credential field is empty; this image documents the form, not a successful cloud validation.

2. Supply the project and credential

Field	Enter
Environment name	A recognizable name, such as Research GCP
GCP project ID	Your actual project ID, not its display name
Region	An allowed region, such as us-central1
Service account JSON	The complete approved JSON credential

Use Read project from JSON to populate the project ID and check it against the intended project. Use Hide credential when available before sharing your screen. Never include the JSON credential in a workflow or a documentation capture.

3. Test and save

Choose Test connection. The daemon authenticates and reads the compute catalog. A successful result reports GCP access verified, with machine, image and disk-type counts. Review the returned message; saving remains disabled until the test succeeds.

If the test reports a disabled Compute Engine API, use the displayed activation link for the correct project, enable it with an authorized account, and retry. If it times out or returns an access error, correct the cause before saving.

Choose Save environment. The application stores the credential separately, saves only its reference in the environment, and requests a catalog refresh. Open the saved environment and inspect Cloud capacity. If saving succeeded but refresh failed, reopen the existing environment and refresh there; do not create a duplicate just to retry synchronization.

Through the API

Complete API connection setup. Keep the service-account file outside your repository, with access restricted to your account.

1. Validate the service account

The commands read the credential file directly; replace its path and the region. Run the following in Bash so pipefail also catches a failed JSON preparation:

set -o pipefail
AKOFLOW_GCP_KEY_FILE='/secure/path/service-account.json'
AKOFLOW_GCP_REGION='us-central1'
AKOFLOW_GCP_PROJECT=$(jq -er '.project_id' "$AKOFLOW_GCP_KEY_FILE") || exit 1

jq --arg region "$AKOFLOW_GCP_REGION" \
  '{provider:"gcp", credential:., projectId:.project_id, region:$region}' \
  "$AKOFLOW_GCP_KEY_FILE" \
  | curl --fail-with-body \
      -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
      -H 'Content-Type: application/json' --data-binary @- \
      "$AKOFLOW_API_URL/cloud-credentials/validate/" -o gcp-validation.json

jq . gcp-validation.json
jq -e '.valid == true' gcp-validation.json

Continue only when validation succeeds. Inspect project, region, machineCount, imageCount and diskCount before saving.

2. Store the credential and prepare the environment

jq '{id:"research-gcp-credential", provider:"gcp", credential:.}' \
  "$AKOFLOW_GCP_KEY_FILE" \
  | curl --fail-with-body \
      -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
      -H 'Content-Type: application/json' --data-binary @- \
      "$AKOFLOW_API_URL/cloud-credentials/" -o gcp-reference.json

The response contains credentialRef, not the original secret. Download the cloud environment template and save it as gcp-environment.template.json. Apply your validated settings:

AKOFLOW_GCP_REF=$(jq -er '.credentialRef' gcp-reference.json) || exit 1
jq --arg ref "$AKOFLOW_GCP_REF" \
  --arg project "$AKOFLOW_GCP_PROJECT" \
  --arg region "$AKOFLOW_GCP_REGION" \
  '.connections[0].credentialRef=$ref |
   .connections[0].configuration.projectId=$project |
   .connections[0].configuration.region=$region' \
  gcp-environment.template.json > gcp-environment.json

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  -H 'Content-Type: application/json' --data-binary @gcp-environment.json \
  "$AKOFLOW_API_URL/environments/" | jq

3. Refresh and inspect the catalog

curl --fail-with-body -X POST \
  -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/environments/research-gcp/cloud-catalog/refresh/" | jq

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/environments/research-gcp/cloud-catalog/" | jq

curl --fail-with-body \
  -H "Authorization: Bearer $AKOFLOW_API_TOKEN" \
  "$AKOFLOW_API_URL/environments/research-gcp/" \
  | jq '{environment: .environment.id, version: .version.id,
         connections: [.connections[] | {id, type}]}'

A catalog GET may return 404 before the first successful refresh. Inspect warnings as well as machines, images and disks: unavailable pricing must not be interpreted as free compute.

Verify the connection result

Evidence	Expected result
Credential validation	Correct project/region and valid: true
Environment	research-gcp exists with a cloud connection
Catalog	Machines, compatible images and disk choices are available
Capacity	No VM is expected merely from connecting the account

Next, follow Cloud capacity and machine configuration to choose a target and deliberately provision a worker. That operation can create billable resources; its guide covers lifecycle and cleanup. Do not treat catalog access as proof that provisioning permissions are complete.

The form and API contracts were checked locally. No live service-account validation, VM provisioning or provider cleanup was performed for these captures. Keep that distinction when recording your own successful connection.
